Altronix ALTV244ULCB3 CCTV Power Supply - 4 PTC Class 2 Outputs

Brand:
Part Number: ALTV244ULCB3
Write a Review
$84.00
OR
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty

Description

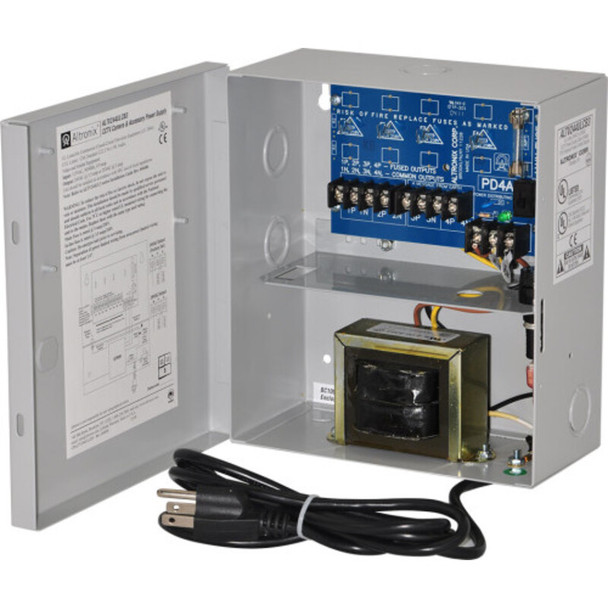

Altronix ALTV244ULCB3 CCTV Power Supply - 4 PTC Class 2 Outputs

ALTV244ULCB3 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-wire line cord.

Key Features:

  • Input
    • 115VAC, 50/60Hz, 0.9A.
  • Output
    • Four (4) PTC protected auto-resettable outputs.
    • 24VAC @ 3.5A (85VA) supply current (0.875A per device, 2.5A max.) or 28VAC @ 3A (85VA) supply current (0.75A per device, 2.5A max.).
    • Outputs are rated @ 2.5A.
    • Surge suppression.
  • Features
    • Secondary fuse rated @ 5A/250V.
    • Factory installed 3-wire line cord.
    • AC power LED.
    • Power ON/OFF switch.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 43 BTU/Hr.
    • System AC input VA requirement: 103.5VA.

Downloads

View AllClose

Additional Information

Accessory Type:
Power Supply
Warranty:
Life-time Warranty
