Altronix ALTV248220 CCTV Power Supply - 8 Fused Outputs

Altronix ALTV248220 CCTV Power Supply - 8 Fused Outputs

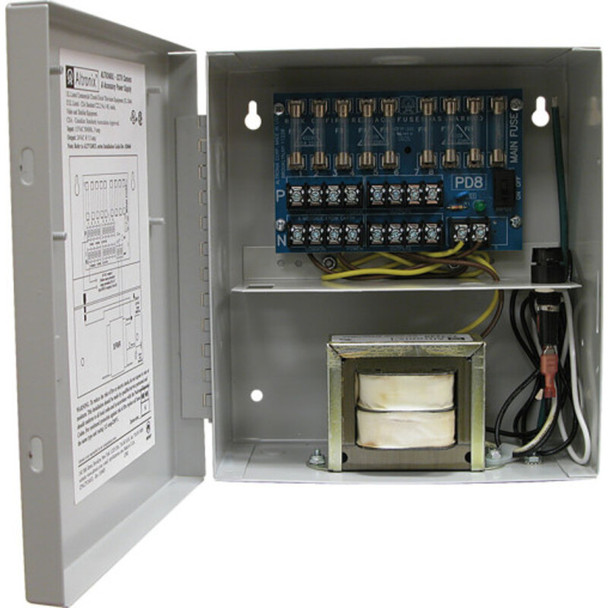

ALTV248220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

Key Features:

• Input

  • 220VAC, 50/60Hz, 0.5A.

• Output

  • Eight (8) fuse protected outputs.
  • 24VAC @ 4A (100VA) supply current (0.5A per device, 3.5A max.) or 28VAC @ 3.5A (100VA) supply current (0.438A per device, 3.5A max.).
  • Outputs are rated @ 3.5A.
  • Surge suppression.

• Features

  • Secondary fuse rated @ 5A/250V.
  • AC power LED.
  • Power ON/OFF switch.
  • Spare fuses provided. (all models w/primary and/or secondary fuses).

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

  • BTU/Hr (approx.):

    • 24VAC: 49 BTU/Hr.
    • 28VAC: 50 BTU/Hr.
  • System AC input VA requirement: 110VA.
