Altronix ALTV248ULCB3 CCTV Power Supply - 8 PTC Class 2 Outputs

Altronix ALTV248ULCB3 CCTV Power Supply - 8 PTC Class 2 Outputs

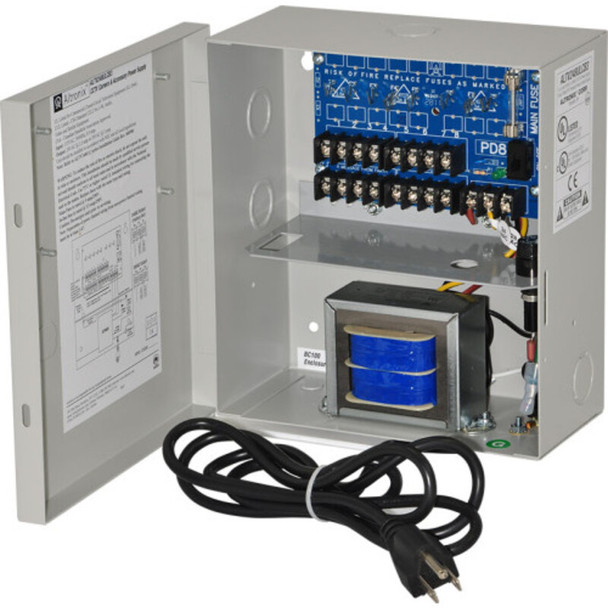

ALTV248ULCB3 provides 24VAC or 28VAC distributed via Eight (8) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-wire line cord.

Key Features:

• Input

  • 115VAC, 50/60Hz, 0.9A.

• Output

  • Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
  • 24VAC @ 3.5A (85VA) supply current (0.438A per device, 2.5A max.) or 28VAC @ 3A (85VA) supply current (0.375A per device, 2.5A max.).
  • Outputs are rated @ 2.5A.
  • Surge suppression.

• Temperature

  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 43 BTU/Hr.
  • System AC input VA requirement: 103.5VA.

• Features

  • Secondary fuse rated @ 5A/250V.
  • AC power LED.
  • Power ON/OFF switch.
  • Factory installed 3-wire line cord.
