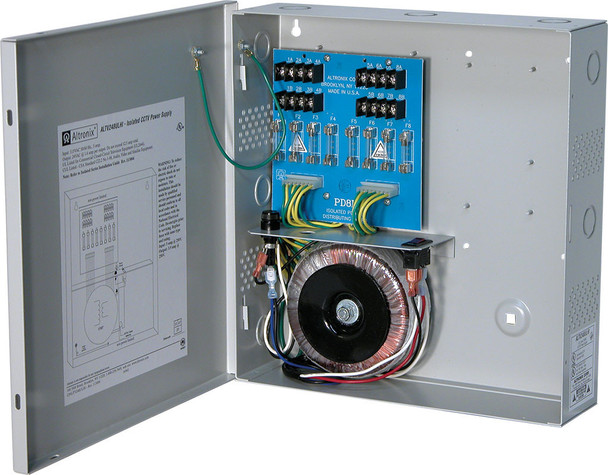

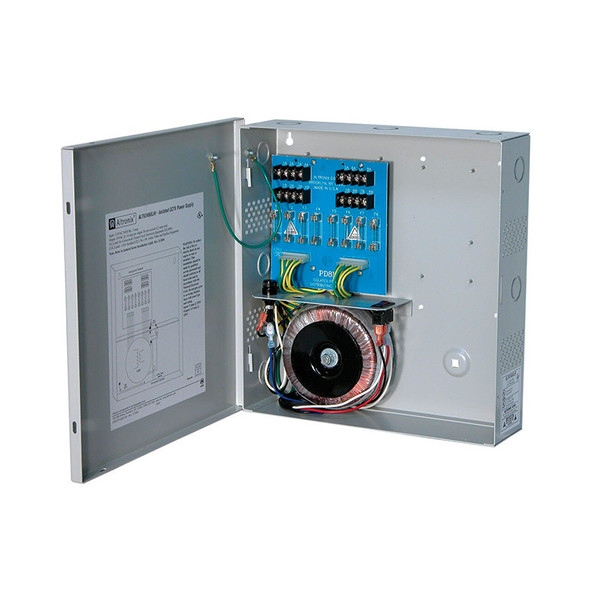

Altronix ALTV248ULHI 8 Fused Outputs CCTV Power Supply

Altronix ALTV248ULHI 8 Fused Outputs CCTV Power Supply

ALTV248ULHI Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.

CCTV Power Supply, 8 Fused Outputs, 24VAC @ 12.5A, 115VAC, BC300 Enclosure

Key Features:

• Input

  • 115VAC, 50/60Hz, 3A.

• Output

  • Eight (8) fuse protected outputs.
  • 24VAC @ 12.5A (300VA) supply current.
  • Outputs are rated @ 3.5A.
  • Surge suppression.

• Features

  • Illuminated master power disconnect circuit breaker with manual reset.
  • Unit maintains camera synchronization.
  • Spare fuses provided.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 154 BTU/Hr.
  • System AC input VA requirement: 345VA.
