Description

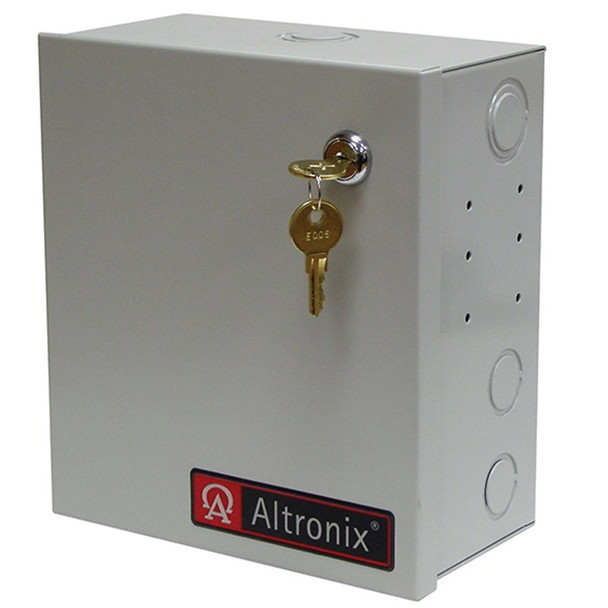

Altronix ALTV248ULMI 8 Output CCTV Power Supply
ALTV248ULMI Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Key Features of Altronix ALTV248ULMI
-
Input
- 115VAC, 50/60Hz, 3A.
-
Output
- Eight (8) fuse protected outputs.
- 24VAC @ 12.5A (300VA) supply current.
- Outputs are rated @ 3.5A.
- Surge suppression.
-
Features
- Illuminated master power disconnect circuit breaker with manual reset.
- Unit maintains camera synchronization.
- Spare fuses provided.
-
Electrical
-
Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 154 BTU/Hr.
- System AC input VA requirement: 345VA.
-
Downloads
Datasheet
DS_UL_Isolatedseries-A1.pdf
Popular Search
Additional Information
|
Accessory Type:
|
Power Supply
|
|
Compliance:
|
NDAA Compliant
|
|
Environmental:
|
Outdoor
|
|
Input Current:
|
3A
|
|
Input Voltage:
|
115VAC
|
|
Number of Supported Cameras:
|
8
|
|
Output Current:
|
12.5A
|
|
Output Voltage:
|
24VAC
|
|
Warranty:
|
Life-time Warranty
|
