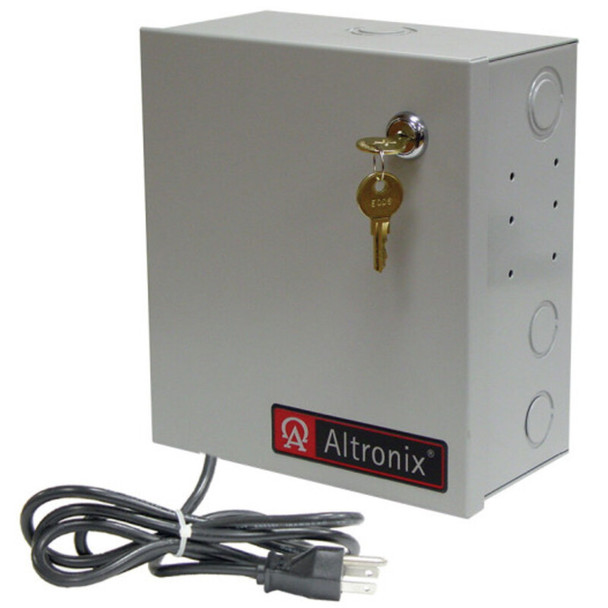

Altronix ALTV248ULMI3 CCTV Power Supply - 8 Fused Outputs

Altronix ALTV248ULMI3 CCTV Power Supply - 8 Fused Outputs

ALTV248ULMI3 Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.

Key Features:

• Input

  • 115VAC, 50/60Hz, 3A.

• Output

  • Eight (8) fuse protected outputs.
  • 24VAC @ 12.5A (300VA) supply current.
  • Outputs are rated @ 3.5A.
  • Surge suppression.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 154 BTU/Hr.
  • System AC input VA requirement: 345VA.

• Features

  • Illuminated master power disconnect circuit breaker with manual reset.
  • Unit maintains camera synchronization.
  • Spare fuses provided.
  • Factory installed 3-wire line cord.
