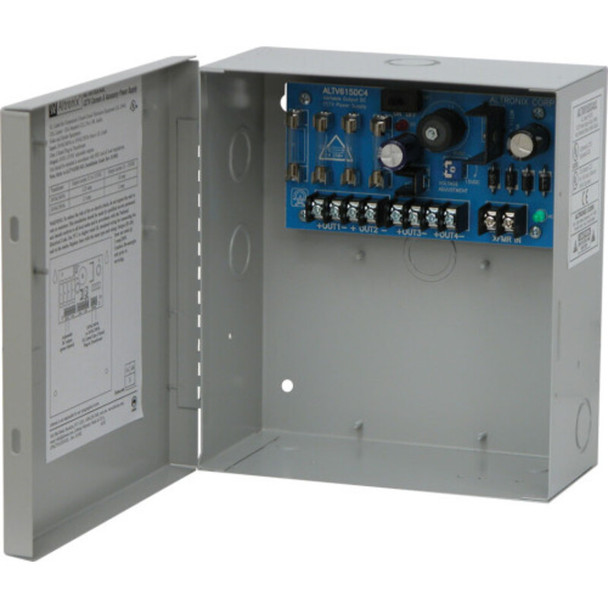

Altronix ALTV615DC4220 CCTV Power Supply - 4 Fused Class 2 Outputs

Altronix ALTV615DC4220 CCTV Power Supply - 4 Fused Class 2 Outputs

ALTV615DC4220 is designed with four (4) fuse protected outputs for powering CCTV Cameras and other video accessories. It will provide 6-15VDC distributed via four (4) outputs with a total of up to 2.5A continuous supply current.

Key Features:

• Input

  • 220VAC (working range 198VAC-256VAC), 50/60Hz, 0.5A.

• Output

  • Four (4) fuse protected outputs.
  • 6VDC to 15VDC field adjustable.
  • 2.5A total continuous supply current (0.625A per device, 1A max.).
  • Outputs are rated @ 3.5A.
  • Filtered and electronically regulated outputs.

• Temperature

  • Operating 0ºC to 49ºC (32ºF to 120ºF).
  • Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr. (approx.): 6-19 BTU/Hr.
  • System AC input VA requirement: 110VA.

• Features

  • 230VAC grounded line installed.
  • AC input and DC output LED indicators.
  • Power ON/OFF switch.
  • Unit maintains camera synchronization.
  • Ease of installation saves time and eliminates costly labor.
