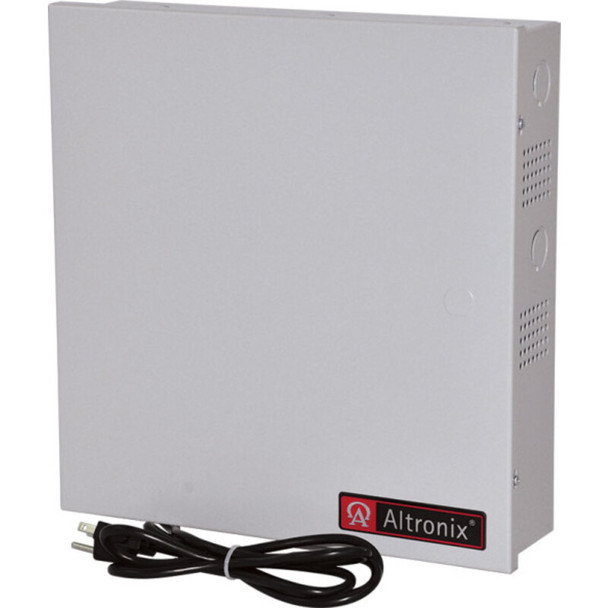

Altronix ALTV615DC8ULCB3 CCTV Power Supply - 8 PTC Class 2 Outputs

Altronix ALTV615DC8ULCB3 CCTV Power Supply - 8 PTC Class 2 Outputs

ALTV615DC8ULCB3 is designed with eight (8) individually Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras and other video accessories. Factory installed 3-wire line cord.

Key Features:

• Input

  • Input 115VAC, 50/60 Hz, 0.9A.

• Output

  • Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
  • 6VDC to 15VDC field adjustable.
  • 4A total continuous supply current (0.50A per device, 2.5A max.).
  • Outputs are rated @ 2.5A.
  • Filtered and electronically regulated outputs.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr.: 12-31 BTU/Hr., depending on output.
  • System AC input VA requirement: 103.5VA.

• Features

  • AC input and DC output LED indicators.
  • Factory installed 3-wire line cord.
  • Power ON/OFF switch.
  • Unit maintains camera synchronization.
  • Ease of installation saves time and eliminates costly labor.
