Altronix DPT724A Timer - 365 Day 24 HourAnnual Event

Brand: Altronix
Part Number: DPT724A
Write a Review
$132.00
$103.96
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty

Description

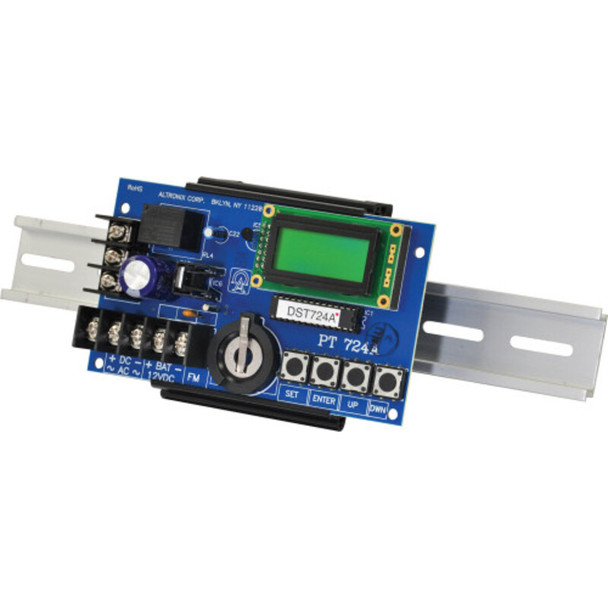

Altronix DPT724A Timer - 365 Day 24 HourAnnual Event

Altronix DPT724A extremely versatile 24 Hour 365 Day Event Timer is designed to support a wide range of applications: Home and Building Automation, Security, Access Control, Lighting Control, etc. The PT724A is equipped with an independently controlled form "C" relay contact that provides many latching and/or momentary operations during a program schedule of your choice. Events may be set for single or multiple operations on a daily and/or weekly schedule.

Key Features:

  • Input
    • 12 to 24 volts AC or DC operation
  • Relay
    • Form "C" relay contacts are rated 10A @ 120VAC/28VDC.
    • Standby current: 10mA (relay off) 50mA (relay on).
  • Features
    • EE Prom memory protects against loss of programming due to power failure.
    • Accurate crystal controlled clock.
    • Momentary and/or Latching Events.
    • 50 individually programmed daily/weekly events.
    • Block programming capacity can accommodate a total of 350 events per week.
    • 10 programmable Holiday dates.
    • "First man in" option.
    • Standard or Daylight Savings Time settings.
    • Automatic compensation for leap year.
  • Visual Indicators
    • Alphanumeric LCD display simplifies programming.
  • Battery Backup
    • Built-in charger for 12VDC sealed lead acid or gel type batteries (Max charge current 100mA).
    • Optional lithium battery backup maintains clock. Order Altronix part # LB2032.
  • Electrical
    • Operating temperature: - 20°C to 49°C (-4°F to 120°F).
    • Storage -20ºC to 70ºC (-4ºF to 158ºF).
    • Relative Humidity: 85% +/-5%.

Downloads

Additional Information

Warranty:
Life-time Warranty
