Altronix EBRIDGE100RMT Ethernet Over Coax/CAT5e Receiver/Transceiver Adapter Kit

Brand:
Part Number: EBRIDGE100RMT
Write a Review
  • Altronix EBRIDGE100RMT Ethernet Over Coax/CAT5e Receiver/Transceiver Adapter Kit
  • Altronix EBRIDGE100RMT Ethernet Over Coax/CAT5e Receiver/Transceiver Adapter Kit
$264.13
OR
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty

Description

Altronix EBRIDGE100RMT Ethernet Over Coax/CAT5e Receiver/Transceiver Adapter Kit

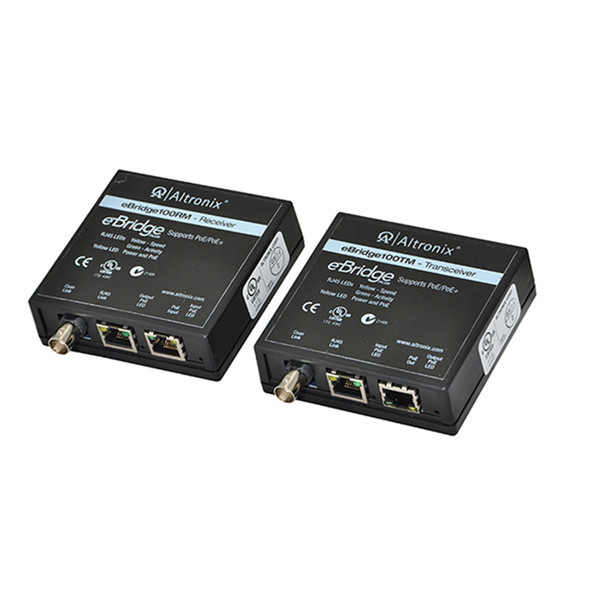

Altronix eBridge100RMT Ethernet over Coax/CAT5e Adapter Kit transmits full duplex data at 100Mbps and pass PoE compliant power over coax 304m, or CAT5e cable up to 500m without repeaters. The adapter kit consists of an eBridge100RM receiver and an eBridge100TM transceiver. These adapters, along with the connected IP camera or edge device, are powered by virtually any midspan or endspan. Remote management functions such as edge device reset, monitoring real-time current draw and port status are possible when coupled with an Altronix NetWay8M/16M Midspan. eBridge100RMT is compatible with Megapixel, HD720, HD1080, and VGA cameras.

Key Features:

  • Powered by midspan or endspan
  • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W)
  • Connectivity: RJ45, auto-crossover
  • Wire type: 4-pair CAT5e cable
  • Speed: 10/100BaseT, half/full duplex, auto negotiation
  • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W)
  • The eBridge100RM receiver passes power over Coax/CAT5e cable to the eBridge100TM transceiver which in turn passes this power to an enabled IP Camera/edge device
  • Throughput is rated to pass 100mbps of data
View AllClose

Additional Information

Accessory Type:
Other
Warranty:
Life-time Warranty
