Altronix EBRIDGE1PCRX IP and PoE+ over Coax Receiver

Brand: Altronix
Part Number: EBRIDGE1PCRX
Write a Review
  • Altronix EBRIDGE1PCRX IP and PoE+ over Coax Receiver
  • Altronix EBRIDGE1PCRX IP and PoE+ over Coax Receiver
$146.26
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty

Description

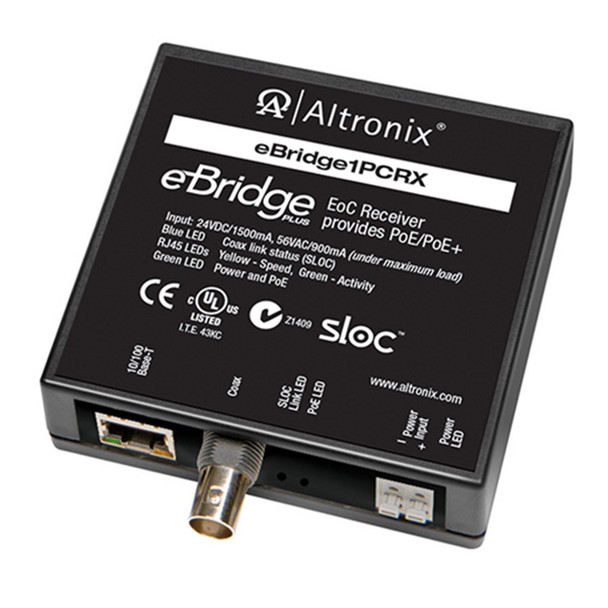

Altronix EBRIDGE1PCRX IP and PoE+ over Coax Receiver

Altronix eBridge1PCRX single port EoC Receiver transmits data and power over coax cable. eBridge1PCRX generates PoE/PoE+ up the coax to an eBridge1PCT, eBridge1PCTX or eBridge1ST transceiver. The transceiver, in turn, delivers that PoE-compliant power to an edge device/camera. This plug and play unit facilitates system upgrades from analog to IP utilizing existing legacy coax and eliminates the costs and labor associated with installing new network cabling. Data transmission and power over the coax is possible up to 500m in comparison to 100m Ethernet distance (CAT5e). Maximum range from headend to the edge device/camera is 700m, taking into consideration that up to 100m of structured cable may be deployed from the receiver to the network switch and the transceiver to the edge device/camera.

Key Features Of Altronix EBRIDGE1PCRX

  • Input
    • 24VDC to 56VDC Class 2 power supply (polarity observed).
  • Power Consumption (under maximum load)
    • 24VDC/1,500mA, 56VDC/900mA.
  • Ethernet
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5 or better structured cable.
    • Distance: up to 100m.
  • Coax
    • Distance: up to 500m for power delivery of coax.
    • Speed: 10/100BaseT, half/full duplex, auto negotiation.
    • PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by eBridge transceiver.
    • Throughput is rated to pass 25mbps of data at distances up to 500m with proper headend equipment which supports Megapixel, HD720, HD1080.
    • Connectivity: BNC, RG-59/U or similar.
  • LED Indicators
    • Blue - Coax link connection.
    • Green - PoE ON. Green - Power ON.
    • Yellow and Green - (RJ45) IP Link status, 10/100Base-T/active.
  • Environmental
    • Operating Temperature:
      • 15W: - 20° C to +45° C ( - 4° F to 113° F ).
      • 30W for 24VDC: - 20° C to +37° C ( - 4° F to 98.6° F ).
      • 30W for 48VDC: - 20° C to +45° C ( - 4° F to 113° F ).
    • Storage Temperature:
      • -20° to 70° C ( -4° to 158° F).
      • Relative humidity: 85%, +/- 5%, non-condensing.
  • BTU/Hr. (approx.):
    • 24VDC: 18 BTU/Hr.
    • 56VDC: 26 BTU/Hr.
  • Operating Altitude
    • -304.8 to 2000m ( - 1000 to 6,561.679ft.).
  • Functions
    • Auto detection and protection of legacy non-PoE cameras/devices.

Additional Information

Accessory Type:
Other
Warranty:
Life-time Warranty
