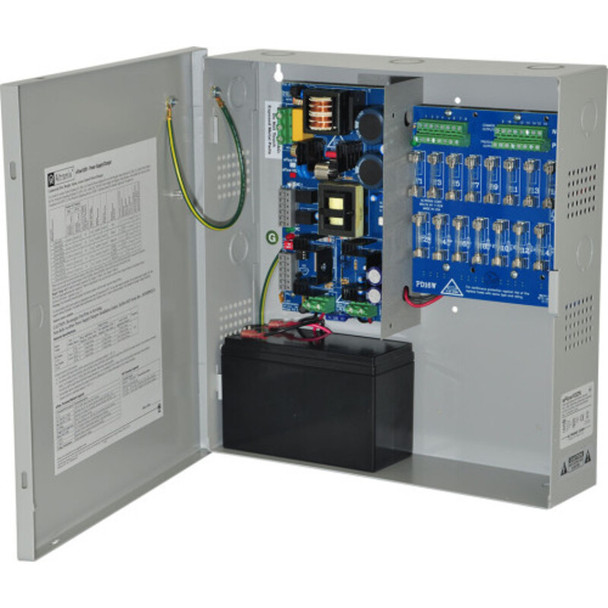

Altronix eFlow102N16V Power Supply Charger - 16 Fused Outputs

Brand: Altronix
Part Number: eFlow102N16V
Write a Review
  • Altronix eFlow102N16V Power Supply Charger - 16 Fused Outputs
  • Altronix eFlow102N16V Power Supply Charger - 16 Fused Outputs
Free shipping over $300 Free Shipping
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty
  • Color : Gray
  • Environmental : Indoor
  • Output Voltage : 12VDC
  • Input Current : 2.1A
  • Input Voltage : 220VAC
  • Output Current : 10A


Altronix eFlow102N16V Power Supply Charger - 16 Fused Outputs

Altronix eFlow102N16V is a power supply/charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into sixteen (16) fuse protected 12VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Key Features:

  • Input
    • 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A.
    • Input fuse: 5A/250V.
  • Output
    • Sixteen (16) fuse protected outputs.
    • Outputs are rated @ 2.5A.
    • 12VDC @ 10A supply current.
    • Auxiliary output rated @ 1A (unswitched).
    • Overvoltage protection.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
    • Battery fail and presence supervision (form "C" contacts).
    • Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% (depending on the power supply). Prevents deep battery discharge.
  • Fire Alarm Disconnect
    • Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 61 BTU/Hr.
    • System AC input VA requirement: 462VA.
  • Visual Indicators
    • Green AC Power LED indicates 220VAC present.
    • AC input, DC output, and Battery LED indicators.
  • Additional Features
    • Short circuit and overload protection.
    • Unit is complete with power supply, enclosure, battery leads, and cam lock.



Lifetime Warranty
View AllClose

Additional Information

Accessory Type:
Power Supply
342.9 x 330.2 x 82.55 mm (13.5 x 13 x 3.25 in)
Input Current:
Input Voltage:
LED Indicator:
Wall Mount
Operating Humidity:
0% to 90%
Operating Temperature:
0 °C to 50 °C (32 °F to 122 °F)
Output Current:
Output Voltage:
Power Supply Type:
Power Supply / Charger
Product Series:
Altronix eFlow Series
Life-time Warranty
