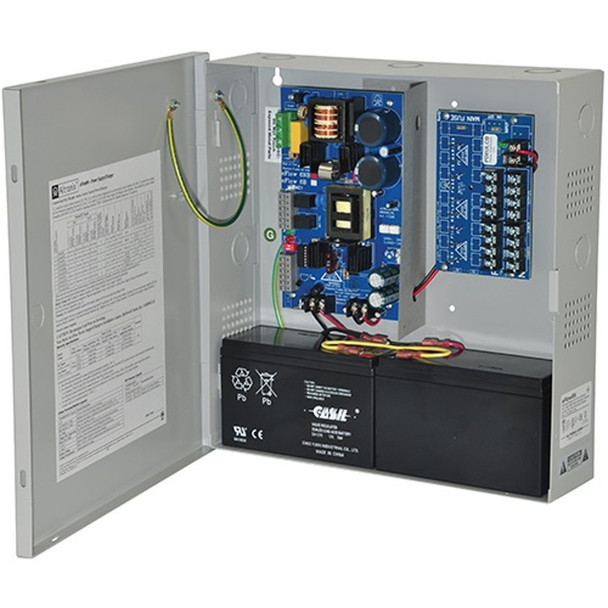

Altronix EFLOW6N8D 8 Output Power Supply Charger

Altronix EFLOW6N8D 8 Output Power Supply Charger

Altronix eFlow6N8D is a power supply/charger that converts a 120VAC 60Hz input into eight (8) Class 2 power-limited PTC protected selectable 12VDC or 24VDC outputs with a total of 6A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Key Features of Altronix EFLOW6N8D

• Input

  • 120VAC, 60Hz, 3.5A.
  • Input fuse: 5A/250V.

• Output

  • Eight (8) Class 2 rated PTC protected power-limited outputs (auto-resettable).
  • 12VDC or 24VDC @ 6.0A supply current.
  • Outputs are rated at 2A.
  • Auxiliary Class 2 Power-Limited output rated @ 1A (unswitched).
  • Overvoltage Protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

• Supervision

  • AC fail supervision (form "C" contacts).
  • Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
  • Battery fail & presence supervision (form "C" contacts).
  • Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

• Fire Alarm Disconnect

  • Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

    • BTU/Hr (approx.):

      • 12VDC: 37 BTU/Hr.
      • 24VDC: 74 BTU/Hr.
  • System AC input VA requirement: 420VA.

• Visual Indicators

  • Green AC Power LED indicates 120VAC present.
  • AC input, DC output and Battery LED indicators.

• Additional Features

  • Short circuit and overload protection.
  • Unit is complete with power supply, enclosure, battery leads and cam lock.
