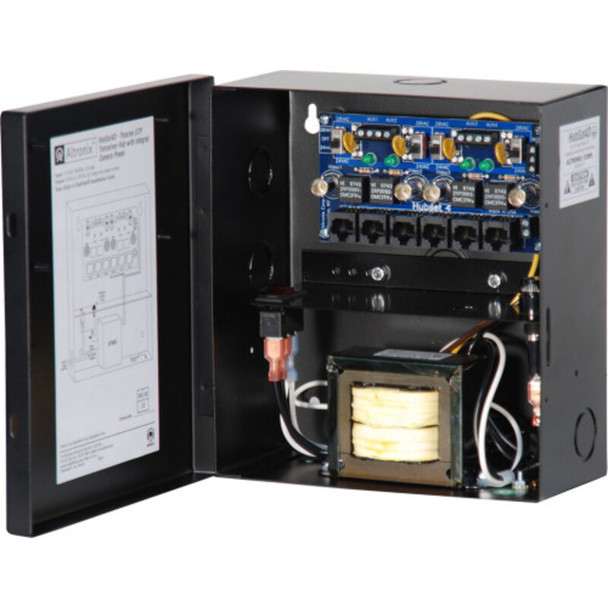

Altronix HubSat4DI UTP Passive Transceiver Hub - 4 Channel

Brand: Altronix
Part Number: HubSat4DI
Write a Review
  • Altronix HubSat4DI UTP Passive Transceiver Hub - 4 Channel
  • Altronix HubSat4DI UTP Passive Transceiver Hub - 4 Channel
  • Altronix HubSat4DI UTP Passive Transceiver Hub - 4 Channel
$201.68
OR
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty

Description

Altronix HubSat4DI UTP Passive Transceiver Hub - 4 Channel

Altronix HubSat4Di Passive UTP Transceiver Hub with Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 4 camera channels in a wall mount enclosure. Video transmission range is up to 750ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv or HubWayDv Video Balun/Combiners. In addition, the unit features 24VAC or 28VAC PTC protected outputs and surge suppression. Optionally, the HubSat4Di can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWay, HubWayLD or HubWayLDH Passive and Active UTP Transceiver Hubs. In addition, the HubSat4D powers these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.

Key Features:

  • Input
    • 115VAC 50/60Hz, 1.5A.
    • Primary fuse (internal) is rated at 3.5A/250V.
  • Output
    • Individually selectable 24VAC or 28VAC power outputs with OFF position.
    • Unit provides up to 1A max. per channel not to exceed a total of 8A (100VA) maximum current.
    • Class 2 Rated power limited outputs.
    • PTC protected outputs are rated @ 1A per channel.
    • Surge suppression.
    • Electronically isolated camera power.
  • Video
    • Four (4) channels of video over twisted pair up to a distance of 228.6m (750ft.) per channel.
    • Four (4) 75 ohm video outputs.
  • Data
    • RS422/RS485 data inputs.
  • Visual Indicators
    • Four (4) individual power LED indicators.
  • Temperature
    • Operating 0° C to 49° C (32° F to 120° F).
    • Storage - 20° C to 70°C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 24VDC: 49 BTU/Hr.
        • 28VDC: 57 BTU/Hr.

Downloads

All Security BrandsClose

Additional Information

Accessory Type:
Transceiver
Warranty:
Life-time Warranty
