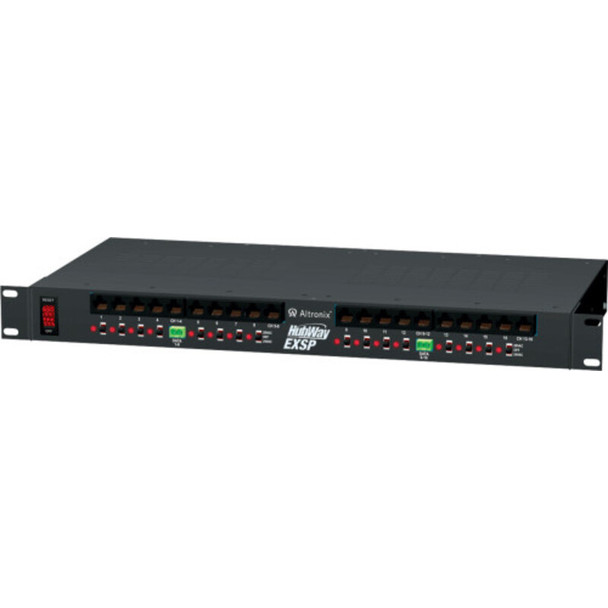

Altronix HubWayEX16SP UTP Active Transceiver Hub - 16 Channel

Altronix HubWayEX16SP UTP Active Transceiver Hub - 16 Channel

Altronix HubWayEX16S Active UTP Transceiver Hub with Integral Isolated camera power employs automatic gain control (AGC) to transmit UTP video, RS422/RS485 data over a single CAT-5 or higher structured cable. Unit provides 16 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to one mile max. per channel.

Key Features:

• Input

  • 115VAC, 60Hz, 2.5A or 230VAC, 50Hz, 1.5A.

• Outputs

  • PTC protected outputs rated 1A per channel.
  • Voltage: Individually selectable 24VAC or 28VAC power outputs with OFF position.
  • Current: Up to 1A max. per channel, not to exceed a total of 10A maximum current.
  • Other: Surge suppression.

• Video

  • Sixteen (16) channel of video over twisted pair up to a distance of 1,500m (5000ft.) per channel.
  • Sixteen (16) 75 Ohm video outputs.
  • Automatic picture and gain control.

• Data

  • RS422/RS485 data inputs.

• Indicators (LED)

  • Video: Sixteen (16) Red LED indicators.

• Temperature

  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

  • BTU/Hr. (approx.):

    • 24VAC: 123 BTU/Hr.
    • 28VAC: 143 BTU/Hr.
