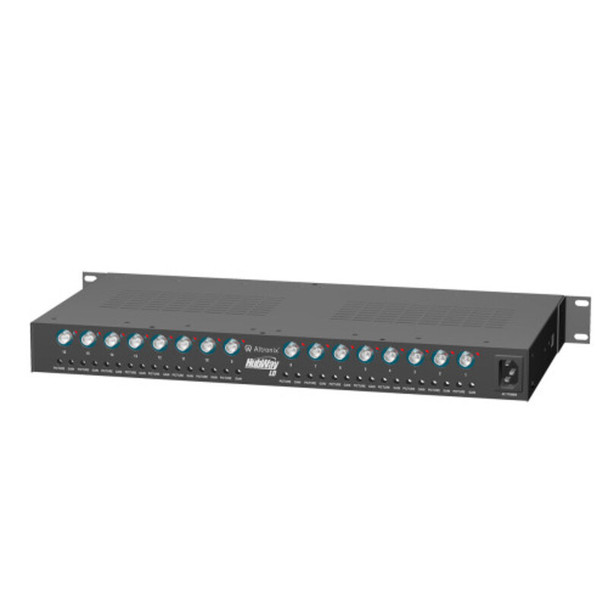

Altronix HubWayLD16D UTP Active Transceiver Hub - 16 Channel
Altronix HubWayLD16D Active UTP Transceiver Hub with Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 16 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 3000ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayAv2, HubWayDv or HubWayDvi Video Balun/Combiners. In addition, the unit features individually selectable 24VAC or 28VAC PTC protected outputs with surge suppression. An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWayLD16D. In addition, the HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.
- Voltage: 115VAC, 60Hz, 3A or 230VAC, 50/60Hz, 1.5A.
- Fusing: Primary fuse (internal) is rated at 5A/250V.
- PTC protected outputs rated 1A per channel.
- Voltage: Individually selectable 24VAC or 28VAC power outputs with OFF position.
- Current: Up to 1A max. per channel, not to exceed a total of 10A maximum current.
- Other: Surge suppression.
- SIxteen (16) channels of video over twisted pair up to a distance of 914.4m (3,000ft.) per channel.
- Sixteen (16) 75 Ohm video outputs.
- Picture and gain control.
- RS422/RS485 data inputs.
- Outputs: Sixteen (16) individual power LED indicators.
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- 24VAC: 123 BTU/Hr.
- 28VAC: 143 BTU/Hr.
