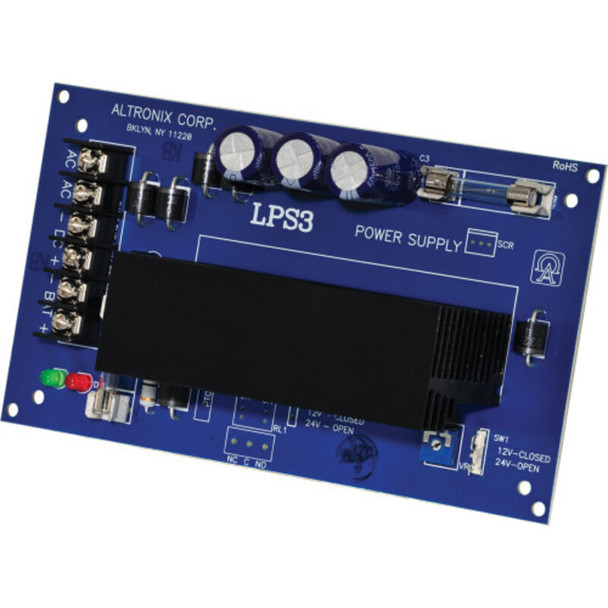

Altronix LPS3 Linear Power Supply/Charger - Single Class 2 Output

Altronix LPS3 Linear Power Supply/Charger - Single Class 2 Output

Altronix LPS3 linear power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. The unit is specifically designed to provide the power needed by the most demanding security and access control applications.

Key Features:

• Input

  • 16VAC or 28VAC.

• Output

  • 12V DC output or 24V DC output selectable
  • 2.5A continuous supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Battery leads included.
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery.
  • Fused battery protection (circuit breaker available).

• Visual Indicators

  • AC/DC power LED indicator.

• Electrical

  • Temperature:

    • Operating 0° C to 49° C (32° F to 120° F).
    • Storage - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.

  • BTU/Hr (approx.):

    • 12VDC: 15 BTU/Hr.
    • 24VDC: 31 BTU/Hr.
