Altronix LPS3C24X220 Linear Power Supply/Charger - Single Class 2 Output
$169.49
Description

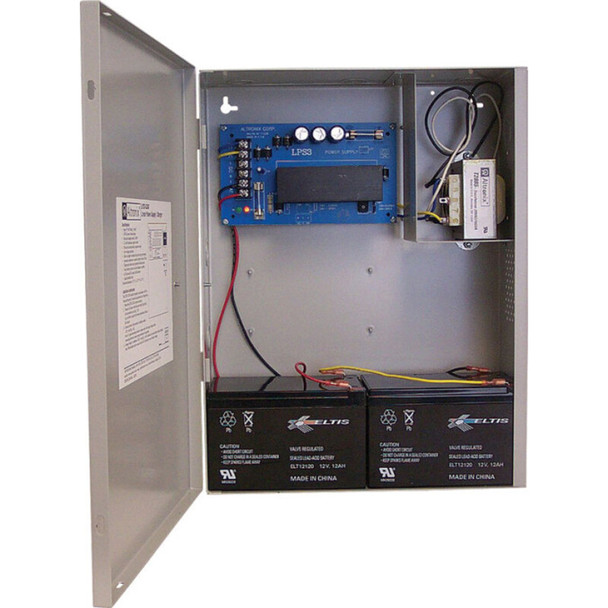

Altronix LPS3C24X220 Linear Power Supply/Charger - Single Class 2 Output
Altronix LPS3C24X220 is specifically designed to provide the power needed by the most demanding security and access control applications. It converts a 220VAC 50/60Hz input to a 24VDC, 2.5A output.
Key Features:
Input
- 220VAC 50/60Hz rated @ 0.5A.
Output
- 24VDC output.
- 2.5A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery
- Battery leads included.
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails (zero voltage drop).
- Fused battery protection (circuit breaker available).
Visual Indicators
- AC/DC power LED indicator.
Electrical
Temperature:
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr: (approx.): 31 BTU/Hr.
Downloads
Datasheet
Altronix LPS3C24X220 Datasheet
