Altronix Maximal35E Power Supply/Charger - Expandable

Brand: Altronix
Part Number: Maximal35E
Write a Review
$632.00
$588.68
OR
Free shipping over $300 Free Shipping
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty

Description

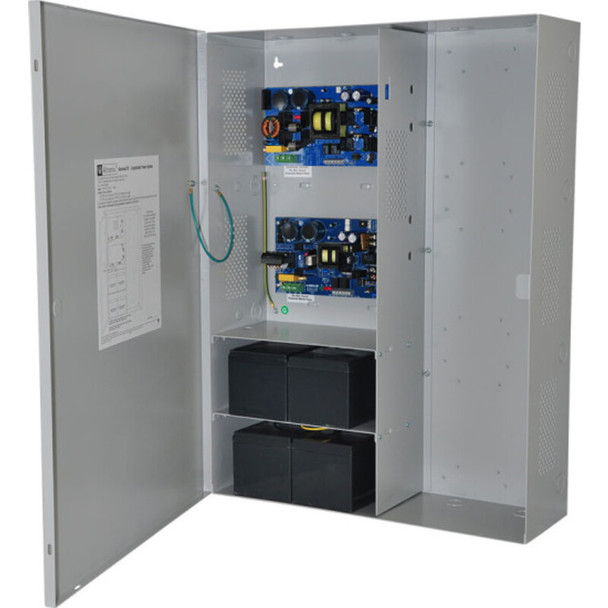

Altronix Maximal35E Power Supply/Charger - Expandable

Maximal35E provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable subassemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.

Key Features:

  • Input
    • 115VAC 60Hz, 6.0A input.
  • Output
    • 12VDC and/or 24VDC outputs.
      • Maximum output current Options:
        • A) 12VDC @ 6A plus 12VDC @ 10A.
        • B) 24VDC @ 6A plus 12VDC @ 10A.
    • Filtered and electronically regulated outputs (built-in power supply).
    • Thermal and short circuit protection with auto reset.
  • Fuse Ratings
    • Power Supply input fuse rated @ 3.5A/250V.
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
    • Low battery and battery presence supervision (form "C" contact).
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
    • Zero voltage drop when unit switches over to battery backup (AC failure condition).
  • Visual Indicators
    • AC input and DC output LED indicators.
  • Electrical
      • Temperature:
        • Operating: 0° C to 49° C (32° F to 120° F).
        • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
      • BTU/Hr (approx.):
        • 12VDC: 98 BTU/Hr.
        • 12VDC & 24VDC: 130 BTU/Hr.
    • System AC input VA requirement: 690VA.

Downloads

All Security BrandsClose

Additional Information

Accessory Type:
Power Supply
Warranty:
Life-time Warranty
