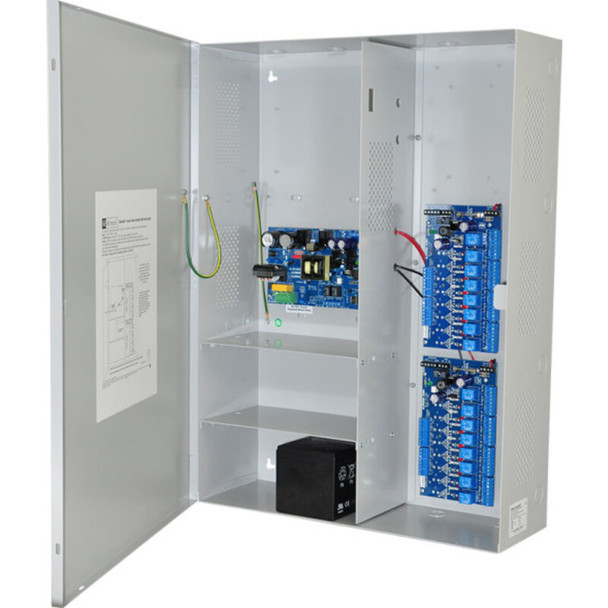

Altronix Maximal5DV Access Power Controller with Power Supply/Charger - 16 PTC Class 2 Relay Outputs

Altronix Maximal5DV Access Power Controller with Power Supply/Charger - 16 PTC Class 2 Relay Outputs

Maximal5DV distributes and switches power to access control systems and accessories. Unit converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into sixteen (16) independently controlled 12VDC PTC protected outputs. The outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

Key Features:

• Sixteen independently controlled Fail-Safe and/or Fail-Secure power outputs.
• Sixteen (16) auxiliary power outputs (unswitched).
• Output PTCs are rated @ 2.5A.
• Filtered and electronically regulated outputs.
• Supervision: AC Fail - Battery Fail and Battery Presence.
