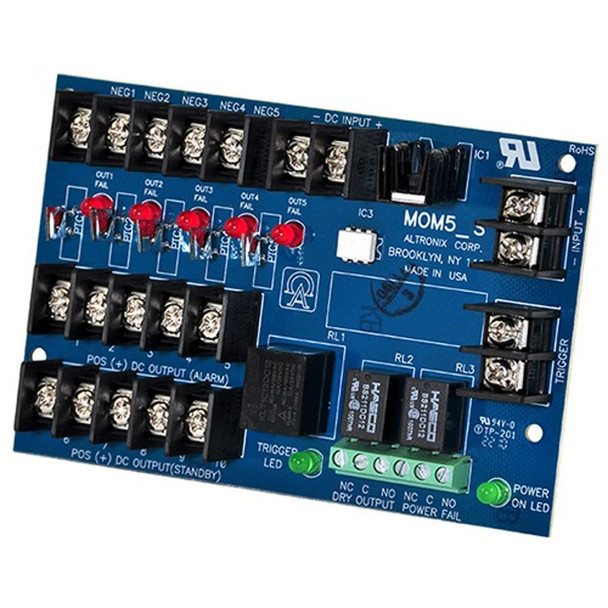

Altronix MOM5 Multi-Output Distribution Module

Altronix MOM5 power distribution module converts one (1) non power-limited DC voltage input to five (5) power-limited outputs. Each output will route power to a variety of access control hardware and devices which includes Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both fail-safe and fail-secure modes. Controlled trigger input is achieved through normally open (NO) or normally closed (NC) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay will enable HVAC Shutdown, Elevator Recall or trigger auxiliary devices.

Key Features of Altronix MOM5

  • Input
    • 12VDC or 24VDC from power supply.
  • Outputs
    • 12VDC or 24VDC operation.
    • Current limit is 2A @ 12VDC or 24VDC per output.
    • Five (5) individual Class 2 Rated PTC protected power-limited outputs (auto-resettable).
  • PTC Ratings
    • PTCs are rated @ 2A/250V.
  • Visual Indicators
    • Red LEDs indicate condition of each power output.
    • Power and input trigger LEDs.
  • Supervision
    • Power fail supervision relay (Form "C" contact rated 1A @ 28VDC).
  • Additional Features
    • Output relay indicates that unit is triggered (Form “C″ contact rated 1A @ 28VDC).
    • Interfaces with most DC Power Supplies.
  • Temperature
    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.


Downloads

Datasheet DS_MOM5-A1.pdf
