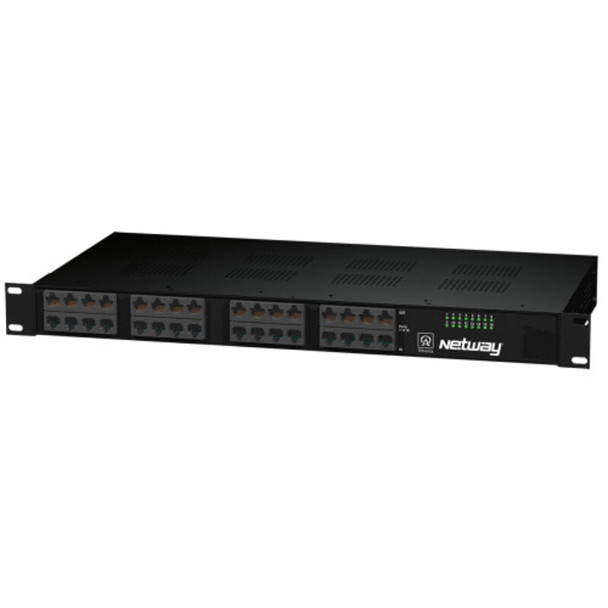

Altronix NetWay16V Midspan Injector - 16 Port

Altronix NetWay16V Midspan Injector - 16 Port

Altronix NetWay16V Midspans provide power and pass data (video) for PoE compliant cameras/devices. Sixteen ports in a space saving 1U EIA 19" rack mount chassis. Cameras/devices may be located up to 100m from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m. for a total range of up to 200m. A maximum range of 600m. is possible using multiple repeaters, based on camera/device port requirement. NetWay Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras by utilizing NetWay1512 or NetWay3012 adapters.

Key Features:

• Input

  • 220VAC 50/60Hz, 2.5A.
  • Primary fuse (internal) is rated at 5A/250V.

• Power

  • Unit provides up to 30W max. full power per port.
  • Total power: 300W.
  • IEEE 802.3af (PoE) and IEEE 802.3at (PoE +) compliant.
  • Short circuit protection.

• Functions

  • Auto detection and protection of legacy non-PoE cameras/edge devices.

• Features

  • Easy plug and play installation.
  • Safe and cost effective power distribution over CAT5/5E/6 LAN infrastructure.
  • Automatic detection and protection of legacy non-PoE cameras.
  • Port status LED indicators.
  • Illuminated master power disconnect circuit breaker with manual reset (switch).
  • IEC 320 - 3-wire grounded line cord (detachable).

• Temperature

  • Operating: - 20° C to 40° C (-4° F to 104° F).
  • Storage: - 20° C to 70° C (-4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr. (approx.): 154 BTU/Hr.
  • System AC input VA requirement: 550VA.

• Operating Altitude

  • - 304.8 to 3,048m ( - 1,000 to 10,000ft.).
