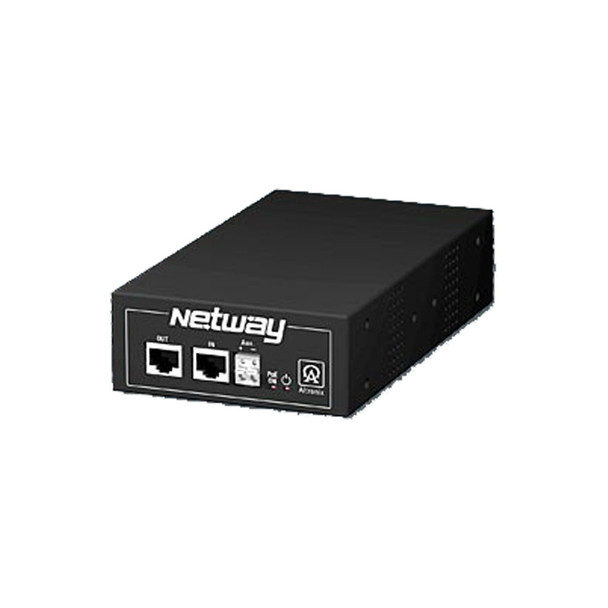

Altronix NETWAY1D Single Port Hi-PoE Midspan PoE Injector

Altronix NETWAY1D Single Port Hi-PoE Midspan PoE Injector

Altronix NetWay1D indoor single port midspan injector provides PoE (15W), PoE+ (30W), and Hi-PoE (60W). The unit is also equipped with a 56VDC Class 2 rated power-limited output for use with Altronix eBridge™ Plus receivers. NetWay1D operates at 115VAC or 230VAC input.

Applications:
Provides PoE/PoE+ and Hi-PoE for cameras/devices.

Key Features of Altronix NETWAY1D

• 115VAC, 60Hz, 1.2A. or 230VAC, 50/60Hz, 0.75A
• Maximum power: Hi-PoE (60W)
• Power provided using all 4 pairs on CAT5e cable
• IEEE 802.3at (30W) & IEEE 802.3af (15W) compliant or Hi-PoE (60W)
• Aux. 56VDC/60W Class 2 rated power-limited output
• Integral surge protection
• Connectivity: RJ45
• Wire type: 4-pair CAT5e or higher cable
• Distance: up to 100m
• Speed: 10/100/1000mbps, half/full duplex, auto negotiation
• 30W: -30° C to 50° C ( -22° F to 122° F)
• 60W: -30° C to 40° C ( -22° F to 104° F)
• -30° C to 85° C ( -22° F to 185° F)
• Relative Humidity 85% +/-5%
• Operating Altitude
• -304.8m to 609.6m ( -1000 ft. to 2,000 ft.
