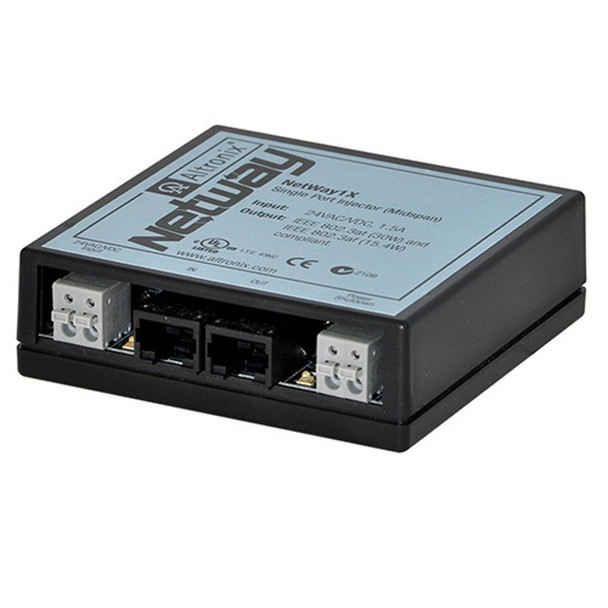

Altronix NetWay1X Single Port Midspan PoE Injector

Altronix NetWay1X Midspan Injector

Midspan Injector, Single Port, 10/100, PoE/PoE+, 30W, 24VAC/VDC, Shutdown Trigger.

Altronix NetWay1X single port midspan PoE/PoE+ compliant power injector provides power and passes data (e.g. video) for PoE/PoE+ compliant devices. Devices may be located up to 100m from NetWay1X. A NetWayXTX repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on device port requirement. NetWay1X is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.

Key Features of Altronix NetWay1X

• Input

  • 24VAC @ 1.5A or 24VDC @ 1.5A.

• Data

  • One (1) PoE/PoE+ port provides power and passes data over ethernet (CAT5) cable up to 100m.
  • Data rate: 10/100 Base-T compliant.

• Output Power

  • Port provides up to 30W max.
  • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
  • Short circuit protection.

• Functions

  • Port status LED.
  • PoE manual shutdown (For UL 60950-1 applications only).
  • Auto detection and protection of legacy non-PoE cameras/devices.

• Temperature

  • Operating:

    • 48VDC, 30W: 0° C to 45° C (32° F to 113° F).
    • 24VAC, 30W: 0° C to 37° C (32° F to 98.6° F).

  • Storage:

    • - 20° to 70° C (-4° to 158° F).
  • Relative Humidity 85% +/- 5%.

• Operating Altitude

  • - 304.8 to 3048m ( - 1000 to 10,000ft.).
