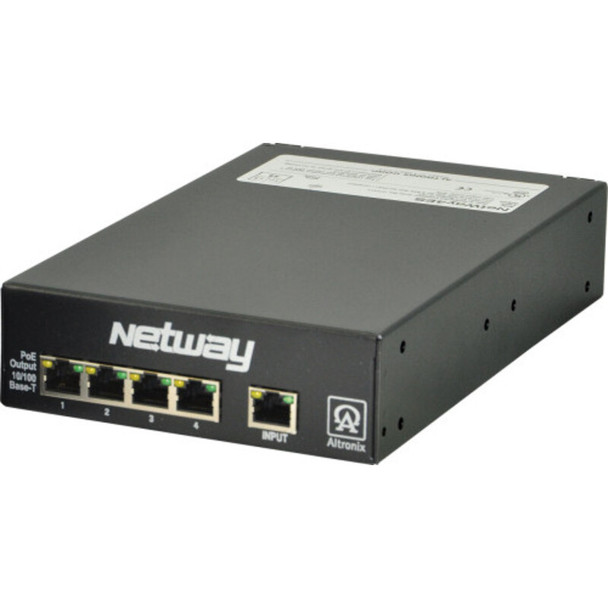

Altronix NetWay4ES Switch - 4 Port PoE/PoE+

Altronix NetWay4ES Switch - 4 Port PoE/PoE+

NetWay4ES is a 4-Port PoE/PoE+ switch which is designed for installation at the IDF (Intermediate Distribution Frame). NetWay4ES allows for system expansion by accommodating up to four (4) IP cameras/devices over a single CAT-5e or higher structured cable. Power up to 60W is provided by NetWay1D midspan injector (included in NetWay4ESK Kit), or 30W by NetWay midspan/endspan, or any IEEE 802.3at standard midspan/endspan typically located at the MDF (Main Distribution Frame).

Key Features:

• Input

  • Up to 60W is provided by NetWay1D midspan injector or 30W by NetWay midspan/endspan or any IEEE 802.3at standard midspan/endspan.

• Power Output

  • Maximum power per port: PoE+ (30W).

  • Total maximum power options:

    • PoE+ (30W) from IEEE 802.3at standard midspan/endspan.
    • 60W from Netway1D.

• Ethernet

  • Connectivity: RJ45, auto-crossover.
  • Wire type: 4-pair Cat-5 or better structured cable.
  • Distance: up to 100m.
  • Speed: 10/100BaseT, half/full duplex, auto negotiation.

• LED Indicators

  • Yellow - IP Link status.
  • Green - 10/100Base-T/active.

• Temperature

  • Operating:

    • 60W: - 40° C to 75° C (-40° F to 167° F).
    • Greater than 60W: - 40° C to 50° C ( - 40° F to 122° F).

  • Storage:

    • - 40° C to 70° C ( - 40° to 158° F).
  • Relative Humidity 85% +/- 5%.

• Operating Altitude

  • - 304.8 to 2000m.

• Features

  • Auto detection and protection of legacy non-PoE cameras/devices.
  • Manual PoE shutdown (spring terminals).
  • IEC 320 - 3-wire grounded line cord (detachable).
