Altronix NetWay4ESK Midspan Injector with 4 Port Switch Kit - 100Mbps

Altronix NetWay4ESK Midspan Injector with 4 Port Switch Kit - 100Mbps

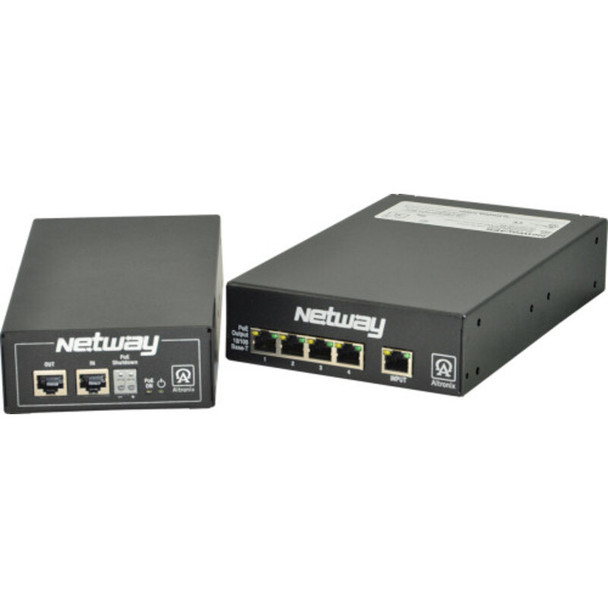

Altronix NetWay4ESK kit includes NetWay4ES and NetWay1D. NetWay4ES, a 4-Port PoE/PoE+ switch, is designed for installation at the IDF (Intermediate Distribution Frame). It allows for system expansion by accommodating up to four (4) IP cameras/devices over a single CAT-5 or higher structured cable. NetWay1D midspan injector provides up to 60W of power and is typically located at the MDF (Main Distribution Frame).

Key Features:

• Input

  • NetWay1D: 115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A.
  • NetWay4ES: powered by Netway1D (included).

• Power Output

  • Maximum power per port: PoE+ (30W)
  • Total maximum power: 60W.

• Ethernet

  • Connectivity: RJ45, auto-crossover.
  • Wire type: 4-pair Cat-5 or better structured cable.
  • Distance: up to 100m.
  • Speed: 10/100BaseT, half/full duplex, auto negotiation.

• LED Indicators

  • NetWay1D:

    • AC Power.
    • Yellow - IP Link status, Green - 10/100Base-T/active.

  • NetWay4ES:

    • Yellow - IP Link status, Green - 10/100Base-T/active.

• Temperature

  • NetWay1D:

    • Operating:
    • 30W: - 30° C to 50° C (-22° F to 122° F).
    • 60W: - 30° C to 40° C (-22° F to 104° F).

  • NetWay4ES:

    • Operating:
    • 60W: - 40° C to 75° C (-40° F to 167° F).
    • Greater than 60W: - 40° C to 50° C (-40° F to 122° F).

  • Storage:

    • - 40° C to 70° C (-40° to 158° F).
  • Relative Humidity 85% +/- 5%.

  • Operating Altitude:

    • - 304.8 to 2,000m.

• Features

  • Auto detection and protection of legacy non-PoE cameras/devices.
  • Manual PoE shutdown (Spring terminals).
  • IEC 320 - 3-wire grounded line cord (detachable).
