Altronix NetWay4EWPN Single 1G Fiber SFP - 4 port 10/100 PoE/PoE+ configurable for 2x 60W Hi-PoE; Hardened

Altronix NetWay4EWPN Single 1G Fiber SFP - 4 port 10/100 PoE/PoE+ configurable for 2x 60W Hi-PoE; Hardened

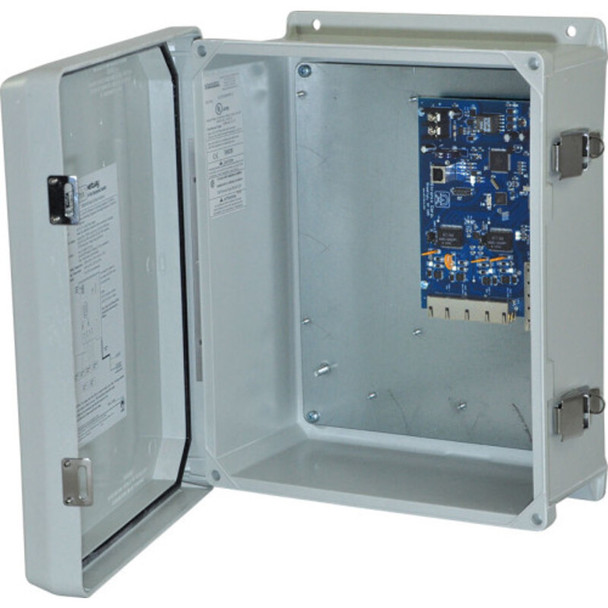

Altronix NetWay4EWPN Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere.

Key Features:

• Input

  • 48-55V UL Listed ITE power supply (up to 120W)

• Power Output

  • 4-ports PoE+ (30W) or up to two (2) Hi-PoE (60W) ports.
  • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
  • 120W total power.
  • Integral surge protection.

• Fiber Port

  • One (1) Gigabit SFP port.
  • Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).

• Ethernet

  • Connectivity: RJ45, auto-crossover.
  • Wire type: 4-pair Cat-5 or better structured cable.
  • Distance: up to 100m.
  • Speed: 10/100Mbps, half/full duplex, auto negotiation.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.

• Indicators (LED)

  • Individual PoE On LEDs for each port.
  • Individual IP Link status, 10/100Base-T/active LEDs for each port.
  • ALOS LED indicates fiber connection for SFP port.
  • Heartbeat LED indicates proper operation of the unit.

• LINQ Technology

  • Remote network management allows for camera/device reset and monitoring.
  • Provides local and/or remote access to critical information via LAN/WAN.
  • Email and Windows Dashboard Alert notifications report real-time diagnostics.
  • Event log tracks history.

• Temperature

  • Operating (120W): - 40° C to 75° C ( - 40° F to 167° F)
  • Storage: - 40° C to 85° C ( - 40° F to 185° F)
  • Relative Humidity: 85% +/- 5%.

• Operating Altitude

  • - 304.8 to 2,000m.
