Description
Altronix NetWay4EWPX Single 1G Fiber SFP - 4 port 10/100 PoE/PoE+ configurable for 2x 60W Hi-PoE; Hardened

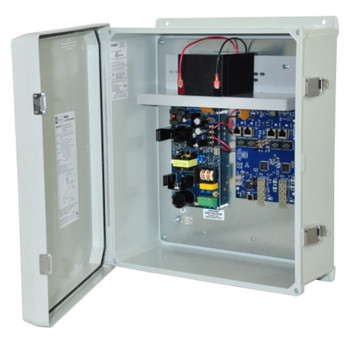

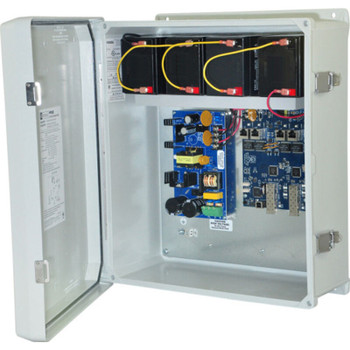

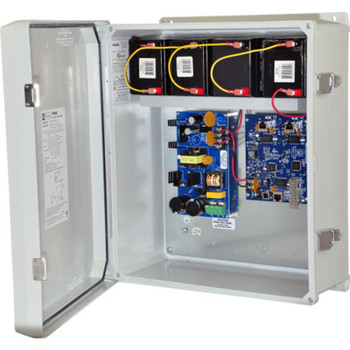

Altronix NetWay4EWPX Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere.
Key Features:
Input
- 115VAC 60 Hz, 3A or 230VAC 50/60 Hz, 1.65A.
Power Output
- 4-ports PoE+ (30W) or up to two (2) Hi-PoE (60W) ports.
- IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
- 120W total power.
- Integral surge protection.
Fiber Port
- One (1) Gigabit SFP port.
Ethernet Ports
- Four (4) 10/100 Mbps or two (2) 10/100/1000 Mbps ports.
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair Cat-5 or better structured cable.
- Distance: up to 100m.
- Speed: 10/100/1000Mbps, half/full duplex, auto negotiation.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails.
Indicators (LED)
- Individual PoE On LEDs for each port.
- Individual IP Link status, 10/100Base-T/active LEDs for each port.
- ALOS LED indicates fiber connection for SFP port.
- Heartbeat LED indicates proper operation of the unit.
Temperature
Operating:
- 60W: - 40° C to 75° C ( - 40° F to 167° F).
- 75W: - 40° C to 70° C ( - 40° F to 158° F).
- 100W: - 40° C to 55° C ( - 40° F to 131° F).
- 120W: - 40° C to 45° C ( - 40° F to 113° F).
- Storage: - 40° C to 85° C ( - 40° F to 185° F).
- Relative Humidity: 85% +/- 5%.
- BTU/Hr. (approx.): 61 BTU/Hr.
Operating Altitude
- - 304.8 to 2,000m.
LINQ Technology
- Remote network management allows for camera/device reset and monitoring.
- Provides local and/or remote access to critical information via LAN/WAN.
- Email and Windows Dashboard Alert notifications report real-time diagnostics.
- Event log tracks history.
Downloads
Datasheet
Altronix NetWay4EWPX Datasheet
