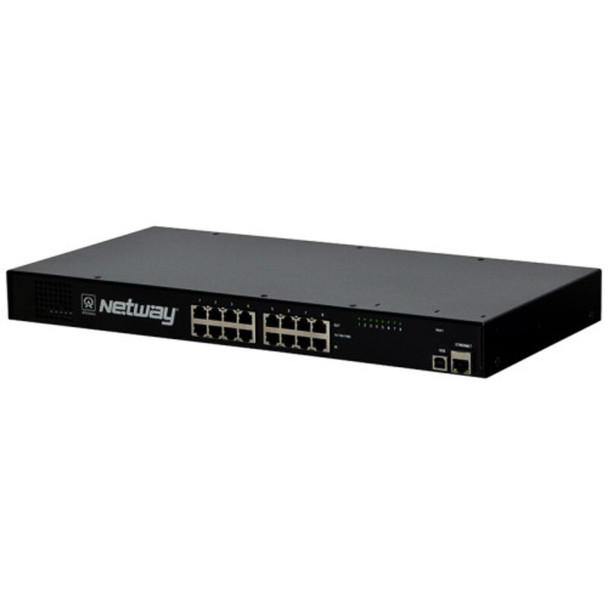

Altronix NetWay8GP 8-Port Managed Hi-PoE Midspan Injector - 60W max per port

Altronix NetWay8GP 8-Port Managed Hi-PoE Midspan Injector - 60W max per port

Altronix NetWay8GP is an 8-port networked Managed Midspan in a 1U rack enclosure. It provides PoE/PoE+/Hi PoE (up to 60W power per port), and passes data at 10/100/1000 Mbps at distances up to 100m. Features also include an integral battery charger for applications requiring backup and embedded LINQ™ Technology to monitor, control, and report power and diagnostics from anywhere.

Key Features:

• Input

  • 115VAC, 60Hz, 5A or 230VAC, 50Hz, 3.5A.

• Power

  • Unit provides PoE / PoE+ / Hi PoE.
  • 60W full power per port.
  • Total power: 480W.
  • IEEE 802.3af, IEEE 802.3at and IEEE802.3bt compliant.
  • Short circuit protection.

• Ethernet

  • Eight (8) ports for cameras/edge devices over ethernet.
  • Wire type: 4-pair CAT5e and higher.
  • Speed: 10/100/1000 Mbps.

• Functions

  • Auto detection and protection of legacy non-PoE cameras/edge devices.

• Battery Backup

  • Built-in battery charger (optional rack mount battery enclosure - RE2).
  • Automatic switchover to stand-by battery when AC fails.

• LINQ Technology

  • SSL (Secure Socket Layer) security encryption.
  • User level security.
  • Built-in IP management allows for remote camera reset and monitoring.
  • Provides local and/or remote access to critical information via LAN/WAN
  • Email and Windows Dashboard Alert notifications report real-time diagnostics.
  • Event log tracks history.

• Temperature

  • Operating: - 20ºC to 40ºC ( - 4ºF to 104ºF).
  • Storage: - 20º to 70ºC ( - 4ºF to 158ºF).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr. (approx.): 500 BTU/Hr.

• Operating Altitude

  • - 304.8 to 3,048m.
