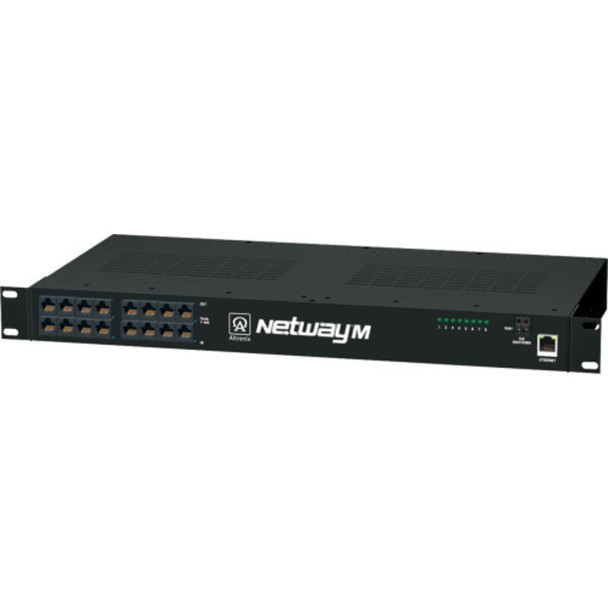

Altronix NetWay8MV Midspan Injector - 16 Port

Altronix NetWay8MV Managed Midspans provide power and pass data for PoE compliant cameras/edge devices. Cameras/edge devices may be located up to 100m from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on camera/ device port requirement. NetWay Managed Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras utilizing NetWay1512 or NetWay3012 adapters.

Key Features:

  • Input
    • 220VAC 60Hz, 1.5A.
  • Power
    • Eight (8) ports of cameras/edge devices over ethernet (CAT5) cable up to a distance of 100m per port.
    • Unit provides up to 30W max. full power per port.
    • Total power: 150W.
    • IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) compliant.
    • Short circuit protection.
  • Functions
    • Programmable PoE shutdown for each port. Utilized to reset cameras/edge devices.
    • Auto detection and protection of legacy non-PoE cameras/edge devices.
  • Features
    • LAN or laptop connection enables programming of PoE shutdown and port monitoring.
    • User interface.
    • Illuminated master power disconnect circuit breaker with manual reset (switch).
    • Individual port status LEDs.
    • IEC 320 - 3-wire grounded line cord (detachable).
  • Temperature
      • Operating:
        • UL60950-1: - 20° C to 40° C ( - 4° F to 104° F).
        • UL294: - 20° C to 49° C ( - 4° F to 120.2° F).
      • Storage:
        • - 20° to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr. (approx.): 77 BTU/Hr.
    • System AC input VA requirement: 330VA.
  • Operating Altitude
    • - 304.8 to 3,048m.


View AllClose

Additional Information

Accessory Type:
Connector PoE Injector
Life-time Warranty
