Altronix NetWaySP8WPN Dual 1G Fiber SFP - 2 ports 10/100/1000 PoE/PoE+

Brand: Altronix
Part Number: NetWaySP8WPN
Write a Review
Free shipping over $300 Free Shipping
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty


Altronix NetWaySP8WPN Dual 1G Fiber SFP - 2 ports 10/100/1000 PoE/PoE+

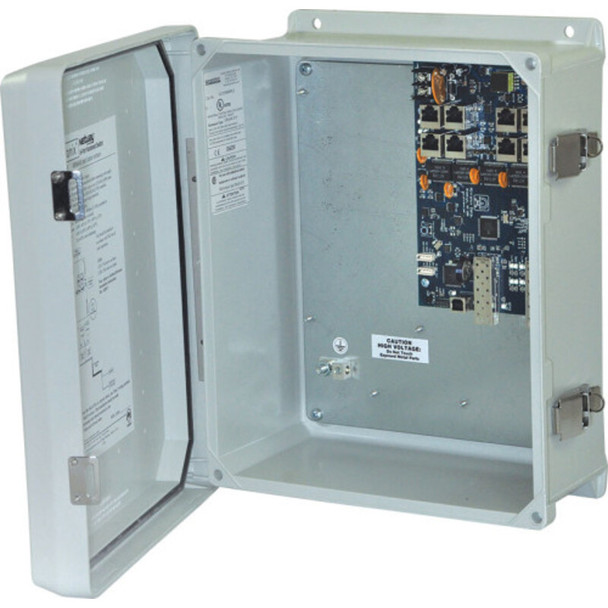

Altronix NetWaySP8WPN Outdoor PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere.

Key Features:

  • Input
    • 48-55V UL Listed ITE power supply (up to 120W).
  • Power Output
    • Eight (8) ports PoE+ (30W) or up to two (2) Hi-PoE (60W) ports.
    • IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
    • 115W total power.
    • Integral surge protection.
  • Fiber Port
    • Two (2) Gigabit SFP ports.
    • Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
  • Ethernet Ports
    • Six (6) 10/100 Mbps and two (2) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5 or better structured cable.
    • Distance: up to 100m.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switch over to stand-by battery when AC fails.
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • LINQ Technology
    • Remote network management allows for camera/device reset and monitoring.
    • Provides local and/or remote access to critical information via LAN/WAN.
    • Email and Windows Dashboard Alert notifications report real-time diagnostics.
    • Event log tracks history.
  • Temperature
    • Operating (115W): - 40° C to 75° C ( - 40° F to 167° F)
    • Storage: - 40° C to 85° C ( - 40° F to 185° F)
    • Relative Humidity: 85% +/- 5%
  • Operating Altitude
    • - 304.8 to 2,000m.
