Altronix OLS200220 Power Supply Charger - Single Output

Altronix OLS200220 Power Supply Charger - Single Output

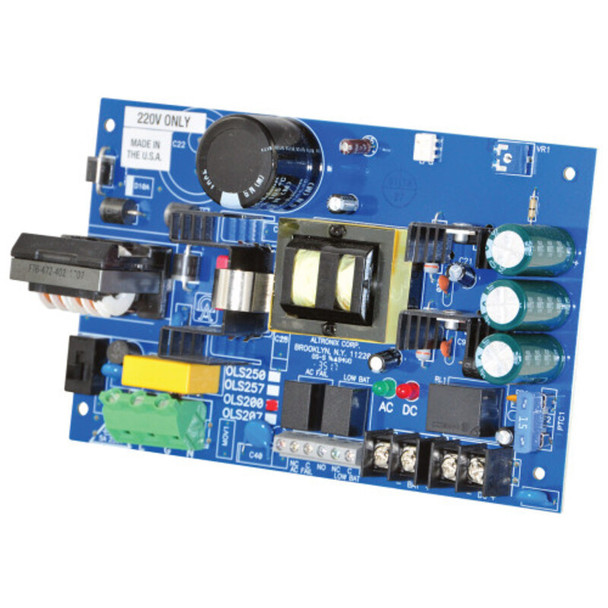

OLS200220 power supply/charger converts a 220VAC (working range 198VAC- 256VAC), 50/60Hz input into a 12VDC output @ 10A continuous supply current (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.

Key Features:

• Input

  • 220VAC (working range 198VAC-256VAC), 50/60Hz, 0.95A.

• Output

  • 12VDC output.
  • 10A continuous supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.

• Supervision

  • AC fail supervision (form "C" contacts).
  • Low battery supervision (form "C" contacts).

• Visual Indicators

  • AC input and DC output LED indicators.

• Features

  • Power ON/OFF switch.
  • Includes battery leads.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 61 BTU/Hr.
  • System AC input VA requirement: 209.0VA.
