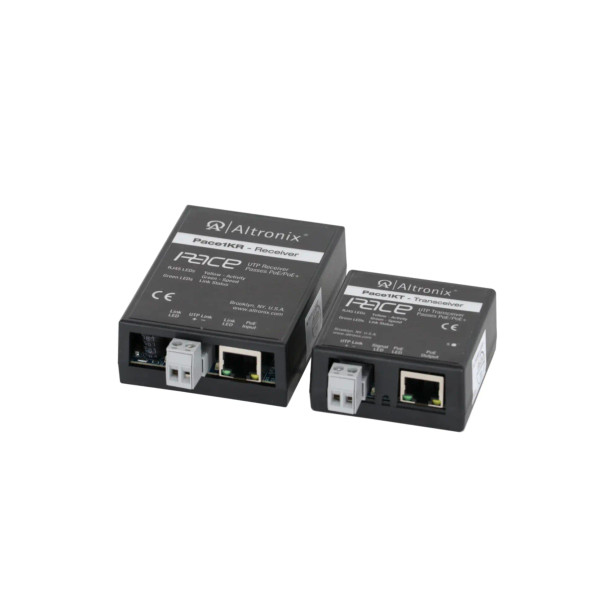

Altronix PACE1KRT Long Range UTP Ethernet Adapter Kit

Altronix PACE1KRT Long Range UTP Ethernet Adapter Kit

The Altronix PACE1KRT is a long-range Single Pair Ethernet (SPE) adapter kit that transmits data and PoE power over twisted pair (2-wire, UTP or shielded) wire up to 1 km (3,280 ft.) — far exceeding the 100m limitation of standard Ethernet. The kit includes both the Pace1KR Receiver (headend) and the Pace1KT Transceiver (remote end), providing a complete plug-and-play solution for extending IP network connectivity in elevator shafts, tunnels, bridges, HVAC systems, intercoms, and industrial environments.

The Pace1KR connects to a PoE midspan or endspan switch at the headend and passes network data and PoE/PoE+ power to the Pace1KT over UTP wire using 16/2 AWG or higher conductors. For non-PoE remote devices, data-only transmission is supported. Auto-detection ensures safe operation with both PoE and non-PoE cameras and devices. The kit also supports retrofitting of legacy 2-wire networks (LONworks, RS485, 4-20mA control loops) using existing wiring.

Key Features:

• Up to 1 km (3,280 ft.) data range over 2-wire UTP or shielded twisted pair; dramatically extends IP network reach for cameras, intercoms, and industrial devices far beyond standard 100m Ethernet limits.
• PoE (IEEE 802.3af, 15W) and PoE+ (IEEE 802.3at, 25W) compliant; delivers power and data over a single pair of wires to remote PoE devices.
• Auto-detection for non-PoE devices; safely transmits data-only to devices without PoE support without requiring manual configuration.
• Compatible with Megapixel, HD720, HD1080, and VGA cameras; broad camera compatibility for surveillance and security applications.
• Supports new SPE installations and legacy 2-wire network retrofits (LONworks, RS485, 4-20mA); saves cabling costs by reusing existing infrastructure.
• Kit includes Pace1KR Receiver and Pace1KT Transceiver; complete adapter solution ready for immediate deployment.
• Lifetime warranty; backed by Altronix's long-term product support commitment.
