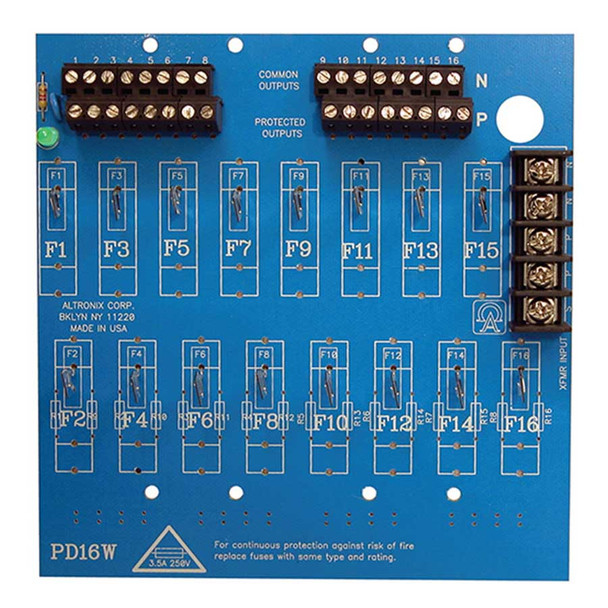

Altronix PD16WCB 16 Output Power Distribution Module

Altronix PD16WCB 16 Output Power Distribution Module

Altronix PD16WCB UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into sixteen (16) PTC protected Class 2 Rated power-limited outputs.

Key Features Of Altronix PD16WCB

• Input

  • 12VDC or 24VDC up to 10A or
  • 24VAC or 28VAC, up to 12A.

• Output

  • Sixteen (16) PTC protected Class 2 Rated power-limited outputs (auto-resettable).
  • 2A per output max.
  • Total output current should not exceed max current rating of power supply employed.
  • PTCs are rated @ 2A/250V.

• Features

  • Power LED indicator.

• Temperature

  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
