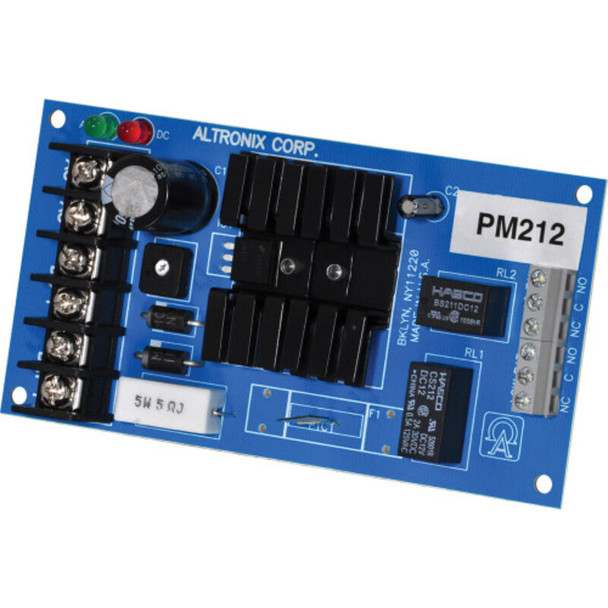

Altronix PM212 Linear Power Supply/Charger - Single Output

Altronix PM212 Linear Power Supply/Charger - Single Output

Altronix PM212 supervised linear power supply/charger converts a low voltage AC input to a filtered and regulated continuous power-limited output.

Key Features:

• Input

  • Transformer requirements:
  • - 16VAC/20VA for 12VDC output (Altronix Model # TP1620).

• Output

  • 12VDC output.
  • 1A continuous supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails (zero voltage drop).

• Supervision

  • AC fail supervision (form "C" contacts).
  • Low battery supervision (form "C" contacts).

• Visual Indicators

  • AC input and DC output LED indicators.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 6 BTU/Hr.
