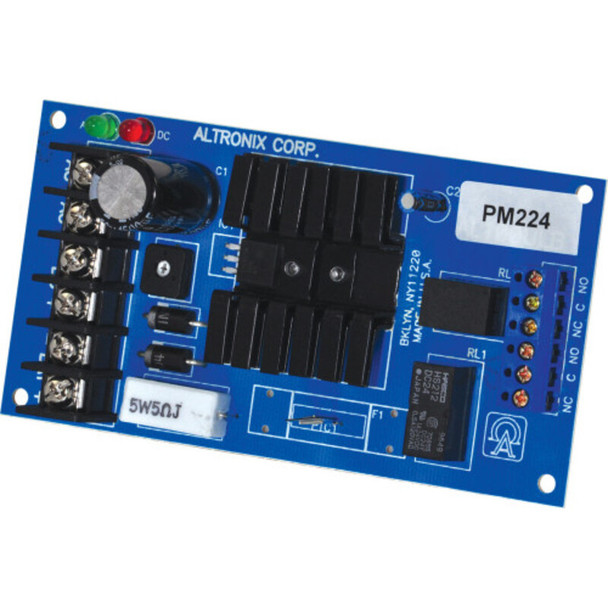

Altronix PM224 Linear Power Supply/Charger - Single Output

Altronix PM224 Linear Power Supply/Charger - Single Output

Altronix PM224 supervised linear power supply/charger converts a low voltage AC input to a filtered and regulated continuous power-limited output.

Key Features:

• Input

  • 24VAC/40VA

• Output

  • 24VDC output
  • 750mA continuous supply current
  • Filtered and electronically regulated output
  • Thermal and short circuit protection with auto reset

• Battery Backup

  • Battery leads included.
  • Built-in charger for sealed lead acid or gel type batteries
  • Automatic switchover to stand-by battery when AC Fails
  • PTC battery protection.

• Supervision

  • AC fail supervision (form "C" contacts).
  • Low battery supervision (form "C" contacts).

• Visual Indicators

  • AC input and DC output LED indicators.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 9 BTU/Hr.
