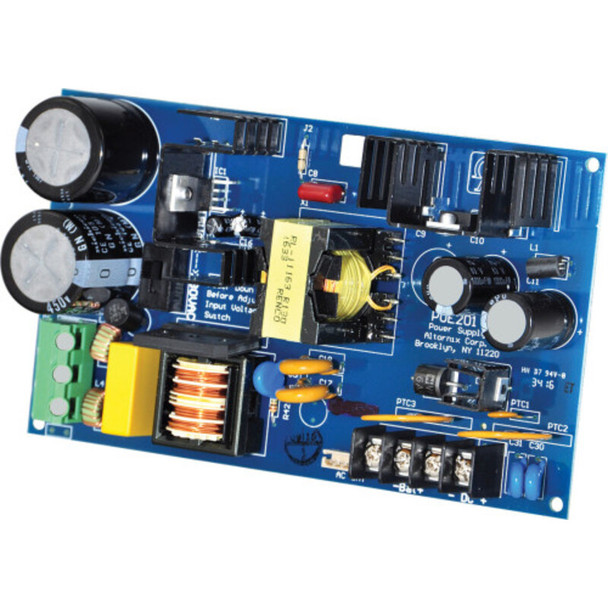

Altronix PoE201 56VDC/120W Power Supply/Charger Board

Altronix PoE201 56VDC/120W Power Supply/Charger Board

Altronix PoE201 provides 120W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50Hz input into a 56VDC at 2.2A of continuous supply current (see specifications). It also features a built-in charger for sealed lead acid or gel type batteries.

Key Features:

• Input

  • 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.

• Output

  • 56VDC/120W output.
  • 2.2A continuous supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.

• Features

  • Input voltage selection switch.
  • Includes battery leads.

• Temperature

  • Operating (120W): - 30° C to 75° C ( - 22° F to 167° F).
  • Storage: - 30° C to 85° C ( - 22° F to 185° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 61 BTU/Hr.
