Altronix R1224DC16CBV Power Supply - 16 PTC Class 2 Outputs

Altronix R1224DC16CBV Power Supply - 16 PTC Class 2 Outputs

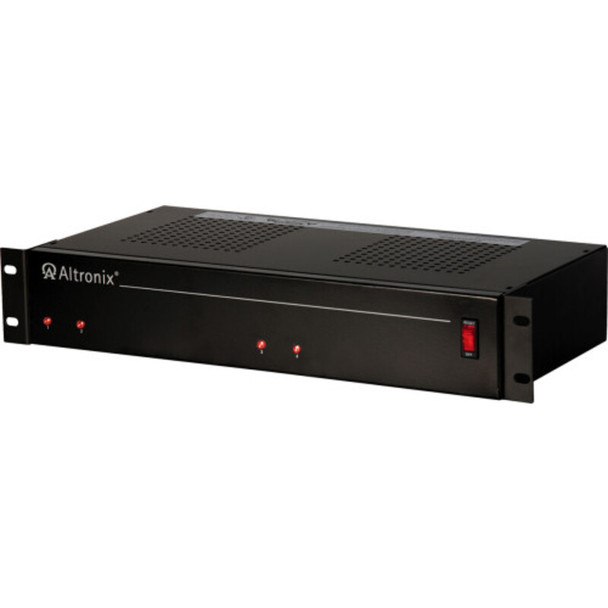

Altronix R1224DC16CBV Rack Mount Power Supply provides 12VDC or 24VDC distributed via sixteen (16) PTC protected auto-resettable outputs.

Key Features:

• Input

  • 220VAC 50/60 Hz, 1.8A @ 12VDC or 3.1A @ 24VDC.

• Output

  • 12VDC @ 4.5A per channel of 4 outputs or 24VDC @ 4.5A per channel of 4 outputs. (2A max. per individual output).
  • 18A total supply current.
  • Sixteen (16) PTC protected outputs.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.

• Temperature

  • Operating temperature: 0° C to 49° C ( 32° F to 120° F ).
  • Storage temperature: -20° C to 70° C ( -4° F to 158° F).

  • BTU/Hr. (approx.):

    • 12VDC - 130 BTU/Hr.
    • 24VDC - 260 BTU/Hr.
  • System AC input VA requirement: 720 VA.

• Visual Indicators

  • Power LED indicators per group of 4 outputs.

• Special Features

  • Illuminated power disconnect circuit breaker with manual reset.
  • Removable terminal blocks w/locking screw flange.
  • IEC 320 - 3-wire grounded line cord (detachable).
  • 3U rack mount chassis for use in standard EIA 19" rack.
  • Ease of installation saves time and eliminates costly labor.
