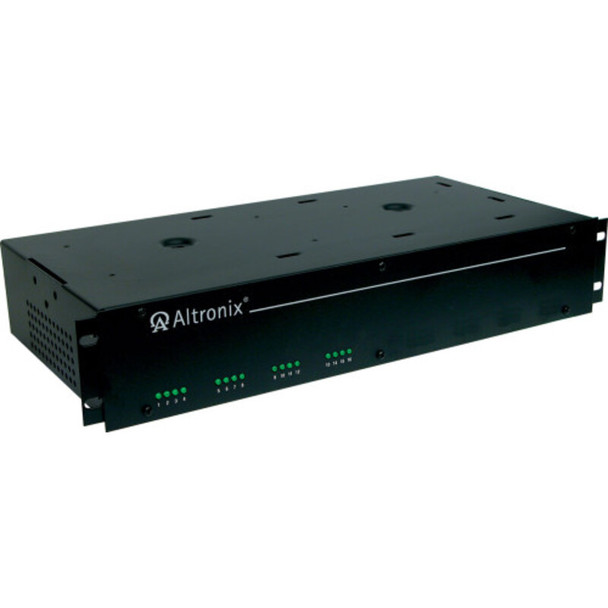

Altronix R615DC616UL CCTV Power Supply - 16 Fused Outputs

Altronix R615DC616UL CCTV Power Supply - 16 Fused Outputs

R615DC616UL provides 6-15VDC distributed via sixteen (16) fuse protected outputs for powering CCTV cameras, heaters and other video accessories.

Key Features:

• Input

  • 115VAC, 50/60Hz, 1.5A.

• Output

  • Sixteen (16) fuse protected outputs.
  • 6-15VDC @ 6A total output current. (0.375A per device, 3.5A max.)
  • Outputs are rated @ 3.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 18-46 BTU/Hr.
  • System AC input VA requirement: 172.5VA.

• Features

  • Sixteen (16) power LEDs.
  • Illuminated master power disconnect circuit breaker with manual reset.
  • 3-wire grounded line cord.
  • Removable terminal blocks with locking screw flange.
  • Spare fuses provided.
