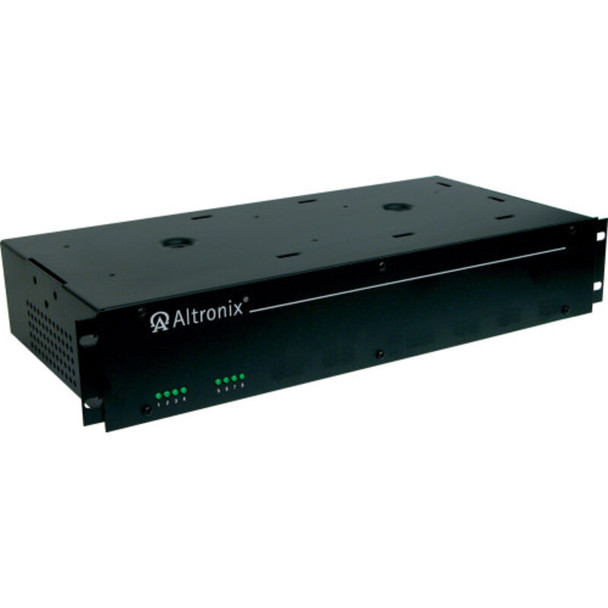

Altronix R615DC8220 CCTV Power Supply - 8 Fused Class 2 Outputs

Altronix R615DC8220 CCTV Power Supply - 8 Fused Class 2 Outputs

R615DC8220 provides 6-15VDC distributed via eight (8) fuse protected outputs for powering CCTV cameras, heaters and other video accessories.

Key Features:

• Input

  • 220VAC, 50/60Hz, 0.5A.

• Output

  • Eight (8) fuse protected outputs.
  • 6-15VDC @ 4A total output current. (0.5A per device, 3.5A max.)
  • Outputs are rated @ 3.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.

• Temperature

  • Operating temperature: 0° C to 49° C ( 32° F to 120° F).
  • Storage temperature: -20° C to 70° C ( -4°F to 158° F).
  • BTU/Hr. (approx., depending on output): 14-36 BTU/Hr.
  • Relative Humidity 85% +/-5%
  • System AC input VA requirement: 110VA.

• Features

  • Eight (8) power LEDs.
  • Illuminated master power disconnect circuit breaker with manual reset.
  • 3-wire grounded line cord.
  • Removable terminal blocks with locking screw flange.
  • Spare fuses provided.
