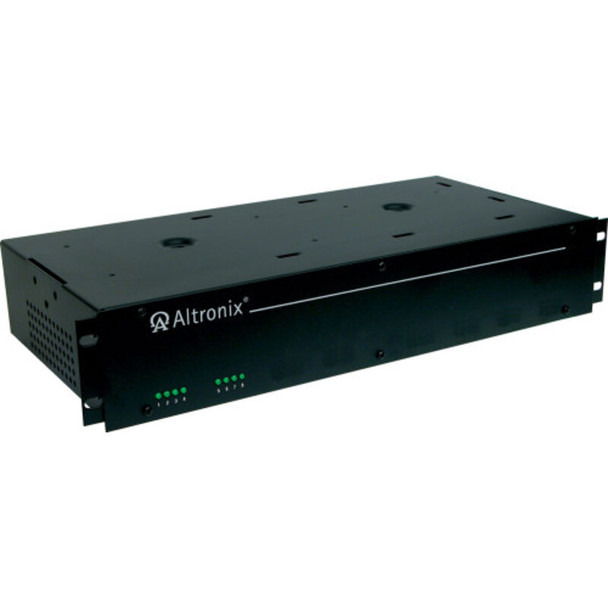

Altronix R615DC8ULCB CCTV Power Supply - 8 PTC Class 2 Outputs

Altronix R615DC8ULCB CCTV Power Supply - 8 PTC Class 2 Outputs

R615DC8ULCB provides 6-15VDC distributed via eight (8) PTC protected outputs for powering CCTV cameras, heaters and other video accessories.

Key Features:

• Input

  • 115VAC, 50/60Hz, 0.9A.

• Output

  • Eight (8) Class 2 Rated PTC protected outputs (auto-resettable).
  • 6-15VDC @ 4A total output current. (0.5A per device, 2.5A max.)
  • Outputs are rated @ 2.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.

• Electrical

  • Temperature:

    • Operating: 0° C to 49° C (32° F to 120° F).
    • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 12-31 BTU/Hr.
  • System ACinput VA requirement: 103.5VA.

• Features

  • Eight (8) power LEDs.
  • Illuminated master power disconnect circuit breaker with manual reset.
  • 3-wire grounded line cord.
  • Removable terminal blocks with locking screw flange.
