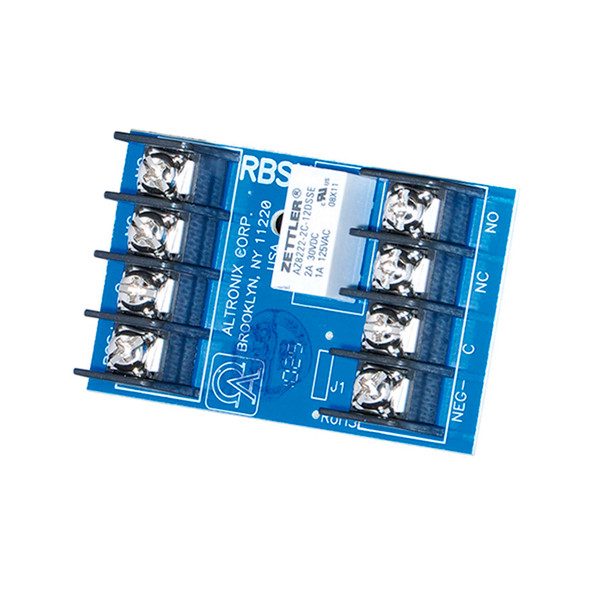

Altronix RBSNP 12/24VDC Relay Module

Altronix RBSNP 12/24VDC Relay Module

RBSNP polarized relay module is designed for continuous duty. This rugged, reliable and dependable relay will handle many switching application.

Key features:

Input Voltage

• 12/24VDC operation.
• Current draw: 15mA.
• Polarity sensitive input.

Contact Rating

• 2A/120VAC or 2A/28VDC DPDT contacts.

Temperature

• Operating -25ºC to 55ºC ( -13ºF to 131ºF).
• Storage -25ºC to 70ºC ( -13ºF to 158ºF).
• Relative Humidity 85% +/- 5%.
• System AC input VA requirement:
• 12VDC: 1.8VA.
