Altronix RDC24 Relay and Base Module, 24VDC

Brand: Altronix
Part Number: RDC24
Write a Review
$25.50
$22.17
Fast Shipping Fast Shipping
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty

Description

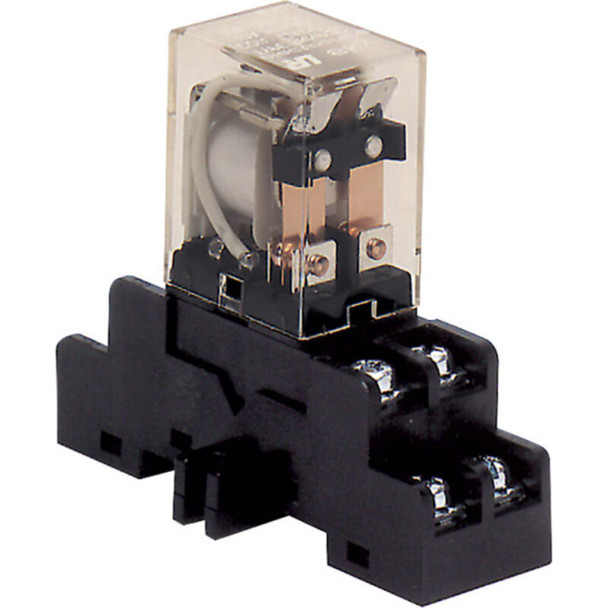

Altronix RDC24 Relay and Base Module - 24VDC

Altronix RDC24 DIN rail mountable relay is designed for continuous duty. This rugged and dependable relay will handle any switching application.

Key Features:

  • Input Voltage
    • 24VDC operation.
    • Current draw: 43mA.
  • Contact Rating
    • 10A./220VAC or 28VDC DPDT contacts.
  • Temperature
    • Operating - 25° C to 55° C ( - 13° F to 131° F).
    • Storage - 25° C to 70° C ( - 13° F to 158° F).
    • Relative Humidity 85% +/- 5%.

Downloads

Additional Information

Warranty:
Life-time Warranty
