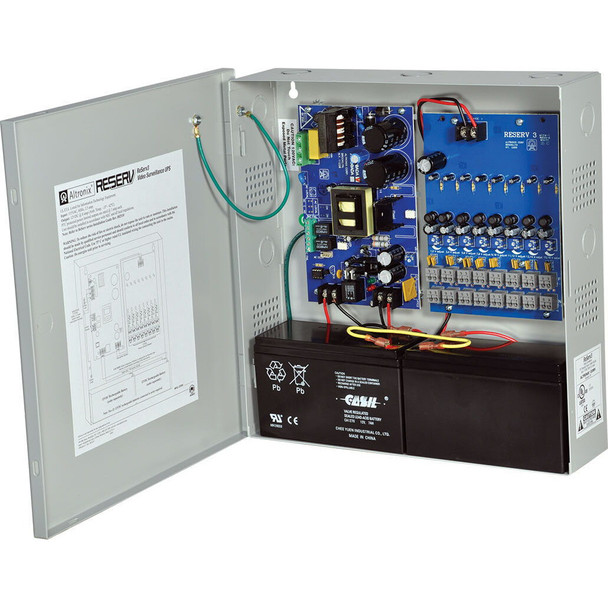

Altronix ReServ3 16 PTC Outputs Video Surveillance UPS

Altronix ReServ3 16 PTC Outputs Video Surveillance UPS

ReServ3 Video Surveillance UPS units are designed to provide power for 12VDC cameras during normal or power outage conditions. Regulated DC outputs.

Video Surveillance UPS, 16 PTC Outputs 12VDC @ 8A, 115VAC, Battery Charging, BC300 Enclosure.

Key Features:

Input

• 115VAC 60 Hz, 3.5A.

Output

• 16 individually PTC protected power-limited auto-resettable outputs.
• 12VDC @ 8A total supply current (0.66A per device, 1A max.) (Amb. Temp. - 33° to 42° C).
• PTC protected power-limited outputs are rated @ 1A.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switchover to stand-by battery when AC fails.
• Stand-by Batteries 8A (100VA) max. load at 12VDC:
• - Two (2) 12VDC/7AH (45 minutes).
• - Two (2) 12VDC/12AH (90 minutes).

Supervision

• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).

Features

• AC/DC power LED indicators.
• Sixteen (16) power output LED indicators.
• Regulated DC outputs.
• Audible alarm provides notification of UPS trouble conditions.
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates costly labor.

Temperature

• Storage - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr (approx.): 49 BTU/Hr.
• System AC input VA requirement: 402.5VA.
