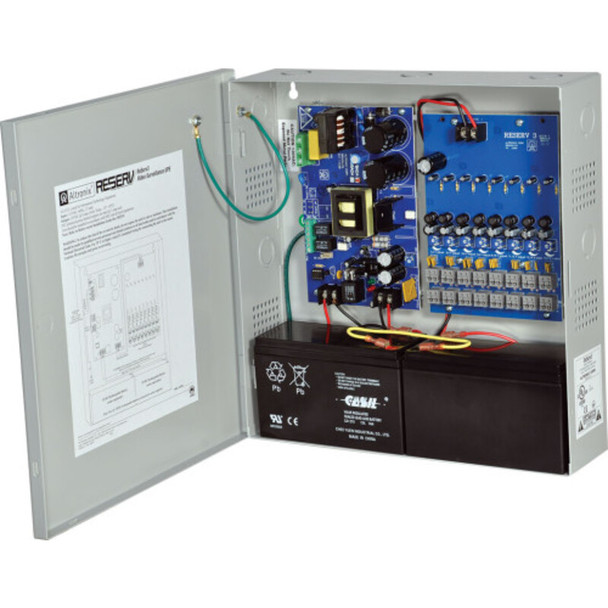

Altronix ReServ3V Video Surveillance UPS - 16 PTC Output

Altronix ReServ3V Video Surveillance UPS - 16 PTC Output

ReServ3V Video Surveillance UPS is designed to provide power for 12VDC cameras during normal or power outage conditions. Regulated DC outputs.

Key Features:

• Input

  • 230VAC 50 Hz, 2A.

• Output

  • 16 individually PTC protected power-limited auto-resettable outputs.
  • 12VDC @ 8A total supply current (0.66A per device, 1A max.) (Amb. Temp. - 33° - 42° C).
  • PTC protected outputs are rated @ 1A.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switchover to stand-by battery when AC fails.
  • Stand-by Batteries 8A (100VA) max. load at 12VDC:
  • - Two (2) 12VDC/7AH (45 minutes).
  • - Two (2) 12VDC/12AH (90 minutes).

• Supervision

  • AC fail supervision (form "C" contacts).
  • Low battery supervision (form "C" contacts).

• Features

  • AC/DC power LED indicators.
  • Sixteen (16) power output LED indicators.
  • Regulated DC outputs.
  • Audible alarm provides notification of UPS trouble conditions.
  • Unit maintains camera synchronization.
  • Ease of installation saves time and eliminates costly labor.

• Temperature

  • Storage - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 49 BTU/Hr.
  • System AC input VA requirement: 440VA.
