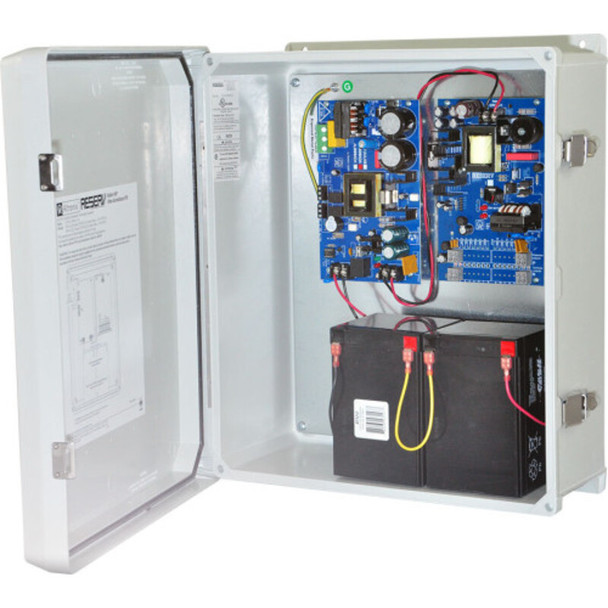

Altronix ReServ4WP Video Surveillance UPS - 2 PTC Outputs 12VDC @ 1A and 2 PTC Outputs 24VAC @ 4A

Brand:
Part Number: ReServ4WP
Write a Review
$362.50
OR
Free shipping over $300 Free Shipping
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty

Description

Altronix ReServ4WP Video Surveillance UPS - 2 PTC Outputs 12VDC @ 1A and 2 PTC Outputs 24VAC @ 4A

ReServ4WP Outdoor Video Surveillance UPS is designed to simultaneously provide power for 24VAC and 12VDC cameras during normal or power outage conditions. True sine wave regulated AC outputs and regulated DC outputs.

Key Features:

  • Input
    • 115VAC 60 Hz, 3.5A.
  • Output
    • 4 individually PTC protected auto-resettable outputs configured as follows:
    • Two (2) outputs @ 24VAC. PTCs rated @ 4A.
    • Two (2) outputs @ 12VDC. PTCs rated @ 1A.
      • Total supply current:
        • 24VAC @ 4A max.
        • 12VDC @ 1A.
  • Battery Backup
    • Built-in charger for sealed lead acid or gel type batteries.
    • Automatic switchover to stand-by battery when AC fails.
    • Stand-by Batteries 4A (100VA) load at 24VAC and 1A load at 12VDC max.:
    • - Two (2) 12VDC/7AH (45 minutes).
    • - Two (2) 12VDC/12AH (90 minutes).
  • Supervision
    • AC fail supervision (form "C" contacts).
    • Low battery supervision (form "C" contacts).
  • Features
    • AC/DC power LED indicators.
    • Four (4) power output LED indicators.
    • Low voltage input and Shutdown LED indicators.
    • True sine wave regulated AC outputs and regulated DC outputs.
    • Audible alarm provides notification of UPS trouble conditions.
    • Unit maintains camera synchronization.
    • Ease of installation saves time and eliminates costly labor.
  • Temperature
    • Storage - 20° C to 70° C ( - 4° F to 158° F).
    • Relative Humidity 85% +/- 5%.
    • BTU/Hr (approx.): 37 BTU/Hr.
    • System AC input VA requirement: 402.5VA.
