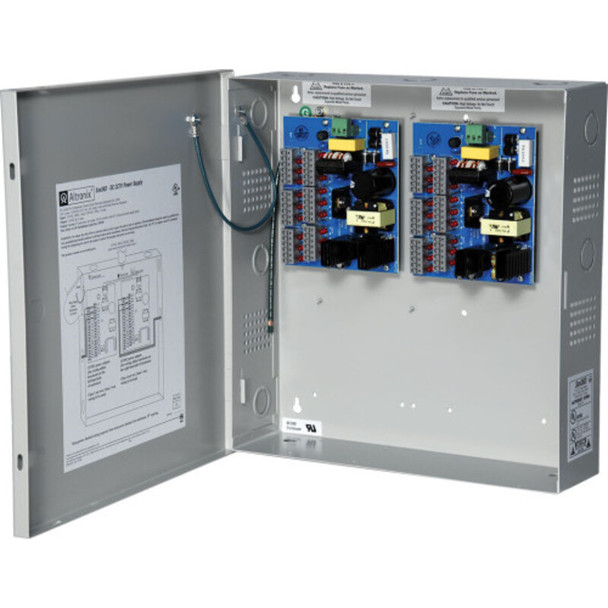

Altronix SAV36D CCTV Power Supply - 36 PTC Class 2 Outputs

Altronix SAV36D CCTV Power Supply - 36 PTC Class 2 Outputs

Sav36D provides 12VDC distributed via thirty-six (36) Class 2 Rated PTC protected power limited outputs for powering surveillance cameras.

Key Features:

• Input

  • 115VAC 60Hz, 3A / 230VAC 50Hz, 1.5A.

• Output

  • 12VDC @ 11A total output current (0.30A per device, 2.5A max.).
  • Thirty-six (36) Class 2 Rated PTC protected power limited auto-resettable outputs.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.

• Features

  • Power LEDs.
  • Field installable 3-wire line cord with integral strain relief.
  • Unit maintains camera synchronization.
  • Ease of installation saves time & eliminates costly labor.

• Temperature

  • Operating 0° C to 49° C (32° F to 120° F).
  • Storage - 20° C to 70°C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 68 BTU/Hr.
  • System AC input VA requirement:
  • 115VAC: 345VA.
  • 230VAC: 330VA.
