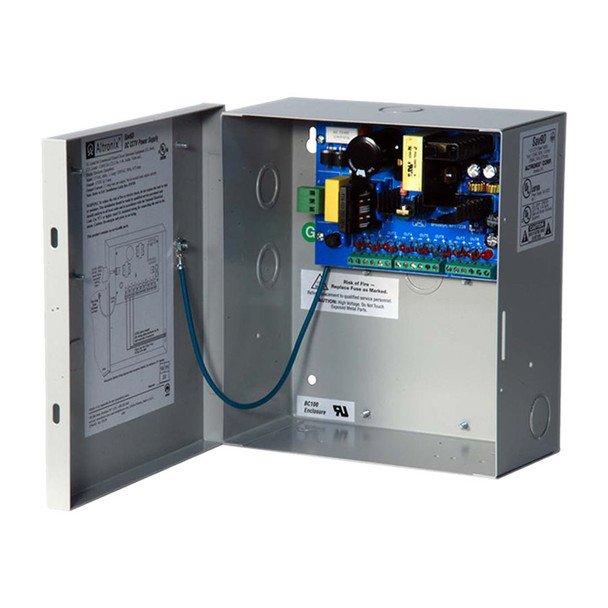

Altronix SAV9D 9 Class 2 Rated PTC Protected DC CCTV Power Supplies

Brand:
Part Number: SAV9D
Write a Review
  • Altronix SAV9D 9 Class 2 Rated PTC Protected DC CCTV Power Supplies
  • Altronix SAV9D 9 Class 2 Rated PTC Protected DC CCTV Power Supplies
$116.06
$87.43
OR
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty
  • Output Voltage : DC 12V
  • Input Current : 1.5A
  • Input Voltage : AC 115V
  • Output Current : 5A

Description

Altronix SAV9D 9 Class 2 Rated PTC Protected DC CCTV Power Supplies

Sav9D Power Supply provides 12VDC distributed via nine (9) Class 2 Rated PTC protected power limited outputs for powering surveillance cameras.

Key Features of Altronix SAV9D

  • Input:
    • 115VAC 60Hz, 1.5A. / 230VAC 50Hz, 0.75A
  • Output:
    • 12VDC @ 5A. total output current (0.55A. per device, 2.5A. max.)
    • Nine (9) Class 2 Rated PTC protected power limited outputs
    • Filtered and electronically regulated outputs
    • Short circuit and thermal overload protection
  • Electrical:
    • Operating temperature: 0° C to 49° C ambient
    • 30.71BTU/Hr
    • System AC input VA requirement: 172.5VA
  • Features:
    • Power LEDs
    • Field installable 3-wire line cord with integral strain relief
    • Unit maintains camera synchronization
    • Ease of installation saves time & eliminates costly labor

Downloads

View AllClose

Additional Information

Accessory Type:
Other
Input Current:
1.5A
Input Voltage:
AC 115V
Output Current:
5A
Output Voltage:
DC 12V
Warranty:
Life-time Warranty
