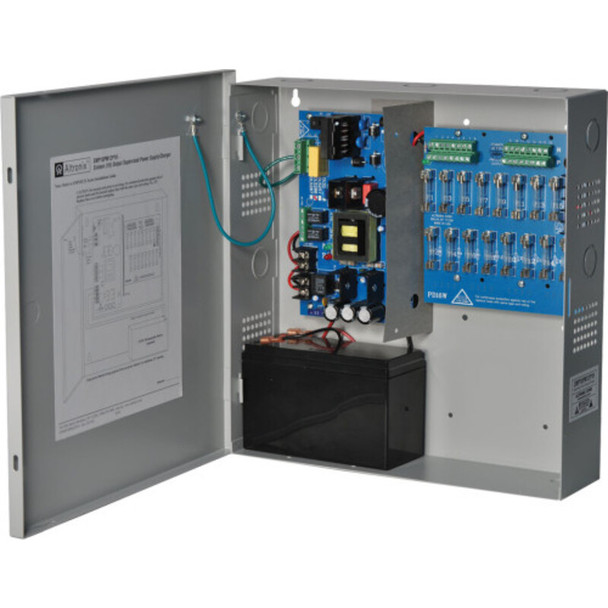

SMP10PM12P16220 is a multi-output power supply/charger that converts a 220VAC, 50/60Hz input into sixteen (16) 12VDC outputs.

Key Features:

• Input

  • Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.8A.

• Output

  • 12VDC output.
  • 10A supply current.
  • Sixteen (16) fuse protected outputs.
  • Outputs are rated @ 3.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.

• Battery Backup

  • Built-in charger for sealed lead acid or gel type batteries.
  • Zero voltage drop when switching over to battery backup.

• Supervision

  • AC fail supervision (form "C" contacts).
  • Battery presence and low battery supervision (form "C" contacts).

• Visual Indicators

  • AC input and DC output LED indicators.

• Temperature

  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 61 BTU/Hr.
  • System AC input VA requirement: 176VA.
