Altronix SMP10PM12P4 Power Supply Charger - 4 Fused Outputs

Brand: Altronix
Part Number: SMP10PM12P4
Write a Review
$251.89
Technical Support Technical Support
Lifetime Warranty Lifetime Warranty

Description

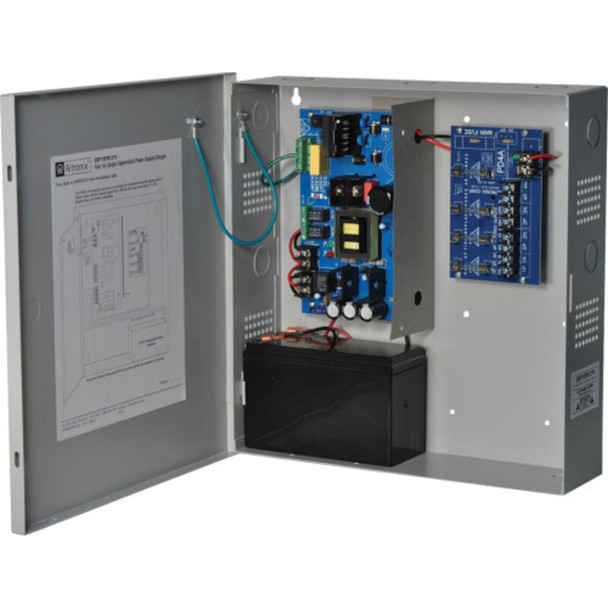

Altronix SMP10PM12P4 Power Supply Charger - 4 Fused Outputs

SMP10PM12P4 is a multi-output power supply/charger that converts a 115VAC/60Hz input into four (4) 12VDC outputs.

Key Features:

INPUT

  • Input 115VAC, 60Hz, 1.45A.
OUTPUT
  • 12VDC output.
  • 10A supply current.
  • Four (4) fuse protected outputs.
  • Outputs are rated @ 3.5A.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.
BATTERY BACKUP
  • Built-in charger for sealed lead acid or gel type batteries.
  • Zero voltage drop when switching over to battery backup.
SUPERVISION
  • AC fail supervision (form "C" contacts).
  • Battery presence and low battery supervision (form "C" contacts).
VISUAL INDICATORS
  • AC input and DC output LED indicators.
TEMPERATURE
  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 61 BTU/Hr.
  • System AC input VA requirement: 166.75VA.

Additional Information

Accessory Type:
Power Supply
Warranty:
Life-time Warranty
